Static spray balls TM series

Sprühkugeln – TM

TM 3/8″ to 2″, TMA 1/8″ and 1/4″, TMÜ

  • Materials: stainless steel, brass, plastic, others
  • Holes and distribution patterns to customer specification
  • Thread 1/8″ to 2″, pressure range 0.5 – 20 bar
  • Minimum order quantity TM and TMA: 5 pieces (custom-made)

Technical Data

  • Materials: stainless steel, brass, plastic, others
  • Holes and distribution patterns to customer specification
  • Recommended minimum order quantity TM and TMA: 5 pieces (custom-made)

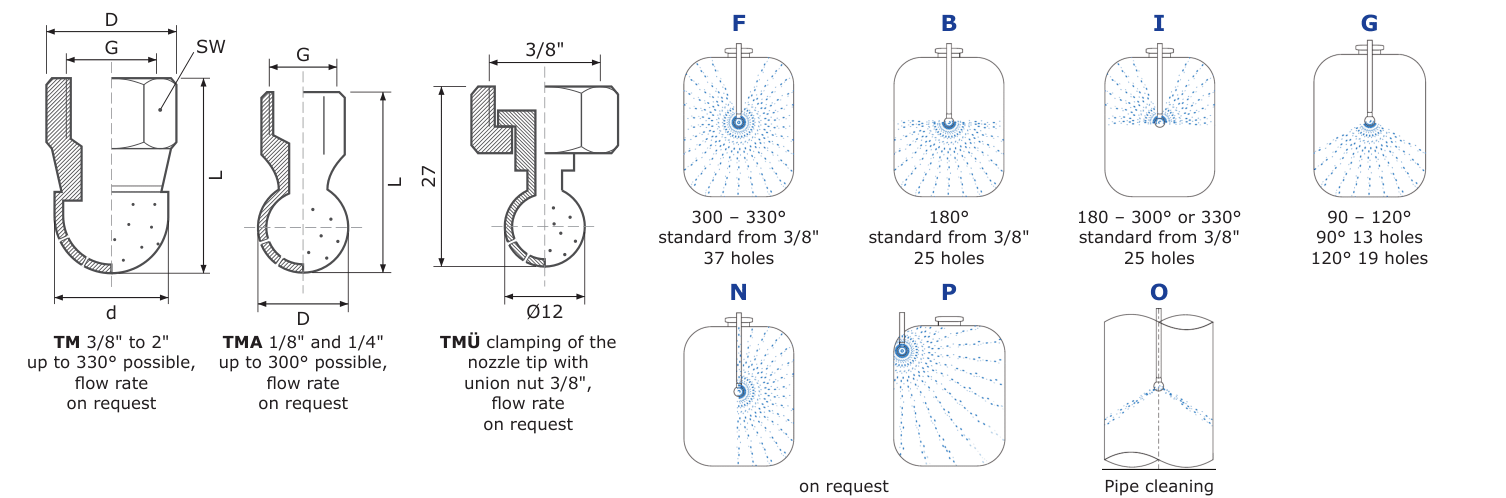

Designs TM, TMA, TMÜ and distribution patterns F, B, I, G, N, P, O

Hole Ø for 1 hole (mm) Flow rate V in l/min at pressure p (bar) max. rec. tank Ø (m) Dimensions (mm) max. V (l/min) at 3 bar max. number of holes max. hole Ø (mm)
0.5 1 2 3 5 10 15 20 G D d L SW
0.6 0.10 0.14 0.20 0.24 0.32 0.45 0.55 0.63 0.3 1/8" 13 13 26 11 16 13 1.0
0.8 0.20 0.28 0.40 0.45 0.60 0.89 1.10 1.26 0.4 1/4" 16 16 30 15 29 19 1.5
1.0 0.35 0.50 0.70 0.85 1.10 1.57 1.92 2.21 0.6 3/8" 24 21 36 22 45 37 2.0
1.5 0.75 1.07 1.50 1.83 2.37 3.36 4.11 4.74 1.0 1/2" 29 26 45 27 88 43 2.5
2.0 1.20 1.70 2.40 2.93 3.79 5.37 6.58 7.58 1.5 3/4" 34 31 54 32 181 74 3.0
2.5 2.05 2.91 4.10 5.00 6.48 11.2 11.2 12.9 2.0 1" 38 35 60 36 282 96 4.0
3.0 3.00 4.26 6.00 7.32 9.40 13.5 16.4 19.0 3.0 1 1/4" 50 50 78 46 410 108 5.0
4.0 4.20 5.96 8.40 10.4 13.3 19.7 23.0 26.5 5.0 1 1/2" 64 64 98 59 577 120 6.0
5.0 7.00 9.90 14.0 17.1 22.1 32.8 38.4 44.2 8.0 2" 70 70 106 64 1000 144 8.0

When selecting the number of holes and the hole Ø, the flow rate V should not be significantly exceeded.

TM G – 90° – 13 holes

Ø (mm) Flow rate V in l/min at pressure p (bar)
0.5 1 2 3 5 10 15 20
0.6 1.30 1.82 2.60 3.12 4.16 5.85 7.15 8.19
0.8 2.60 3.64 5.20 5.85 7.80 11.57 14.17 16.4
1.0 4.55 6.50 9.10 11.0 14.3 20.4 24.8 28.7
1.5 9.75 13.9 19.5 23.8 30.8 43.7 53.4 61.6
2.0 15.6 22.1 31.2 38.1 49.3 69.8 85.4 98.5
2.5 26.6 37.8 53.3 65.0 84.2 118 146 168
3.0 39.0 55.4 78.0 95.2 122 176 214 246
4.0 54.6 77.5 109 135 173 248 299 344
5.0 91.0 129 180 222 287 426 499 575

TM G – 120° – 19 holes

Ø (mm) Flow rate V in l/min at pressure p (bar)
0.5 1 2 3 5 10 15 20
0.6 1.90 2.66 3.80 4.56 6.08 8.55 10.4 12.0
0.8 3.80 5.32 7.60 8.55 11.4 16.9 20.7 23.9
1.0 6.65 9.50 13.3 16.2 20.9 29.8 36.3 42.0
1.5 14.2 20.3 28.5 34.8 45.0 63.8 78.1 90.1
2.0 22.8 32.3 45.6 55.7 72.0 102 125 144
2.5 39.0 55.3 77.9 95.0 123 174 213 246
3.0 57.0 80.9 114 139 179 256 312 360
4.0 80.0 113 210 260 332 374 437 504
5.0 133 188 266 325 420 623 730 840

TM B + I 180° – 25 holes

Ø (mm) Flow rate V in l/min at pressure p (bar)
0.5 1 2 3 5 10 15 20
0.6 2.50 3.50 5.00 6.00 8.00 11.2 13.8 15.8
0.8 5.00 7.00 10.0 11.2 15.0 22.2 27.2 31.5
1.0 8.75 12.5 17.5 21.2 27.5 39.2 47.8 55.2
1.5 18.8 26.8 37.5 45.8 59.2 84.0 103 118
2.0 30.0 42.5 60.0 73.2 94.8 134 164 190
2.5 51.2 72.8 102 125 162 280 281 324
3.0 75.0 106 150 183 235 338 411 474
4.0 105 149 210 260 332 492 575 662
5.0 175 248 350 428 552 820 960 1105

TM F – 330° – 37 holes

Ø (mm) Flow rate V in l/min at pressure p (bar)
0.5 1 2 3 5 10 15 20
0.6 3.70 5.18 7.40 8.88 11.8 16.6 20.4 23.3
0.8 7.40 10.4 14.8 16.6 22.2 33.0 40.3 46.6
1.0 12.8 18.5 25.9 31.4 40.7 58.1 70.7 81.8
1.5 27.8 39.6 55.5 67.7 87.7 124 152 175
2.0 44.4 63.3 88.8 108 140 199 243 280
2.5 75.8 108 152 185 238 414 415 479
3.0 111 158 222 271 348 500 608 701
4.0 155 220 311 385 492 729 851 980
5.0 259 366 518 632 818 1214 1421 1635

The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status: 03.10.2026)
