Barrel cleaner BRA Simplex
Hand-held barrel cleaner with electric drive
- Cleaning and extraction at the same time
- 360° jet coverage
- Electric drive 100–240 VAC
- Modular, service-friendly design
- For barrels from 225 to 600 litres
- For bungholes larger than Ø 37 mm
- Bunghole fixture for Ø 37–56 mm
- Vacuum generated by high-pressure injector system
- R40 cleaning head with 2 nozzles (5°)
- Complete cleaning cycle in approx. 3–5 min
- Plug with 10 m cable
- Very low operating noise
- Other pipe lengths on request
| Technical data | Value |
|---|---|
| Drive: | electric, 100 – 240 VAC |
| Power supply: | Plug with 10 m cable |
| Cleaning head: | R40, rotating |
| Working pressure: | 80 – 120 bar (1160 – 1740 psi) (recommended) |
| Flow rate: | 15 – 20 LPM (4.0 – 5.3 US gpm) (recommended) |
| Max. temperature: | 90 °C (194 °F) |
| Speed: | 17 rpm |
| Jet coverage: | 360° |
| Nozzles: | 2, 5° |
| Cleaning cycle: | approx. 3 – 5 min (approx. 60 revolutions) |
| Connection: | M22 × 1.5 |
| Insertion opening: | bunghole larger than Ø 37 mm (1.46 inch) |
| Bunghole fixture: | for Ø 37 – 56 mm (1.46 – 2.20 inch) |
| Barrel sizes: | 225 – 600 litres (59 – 159 US gal) |
| Material head and pipe: | stainless steel AISI 316 |
| Seals: | FPM (Viton®) |

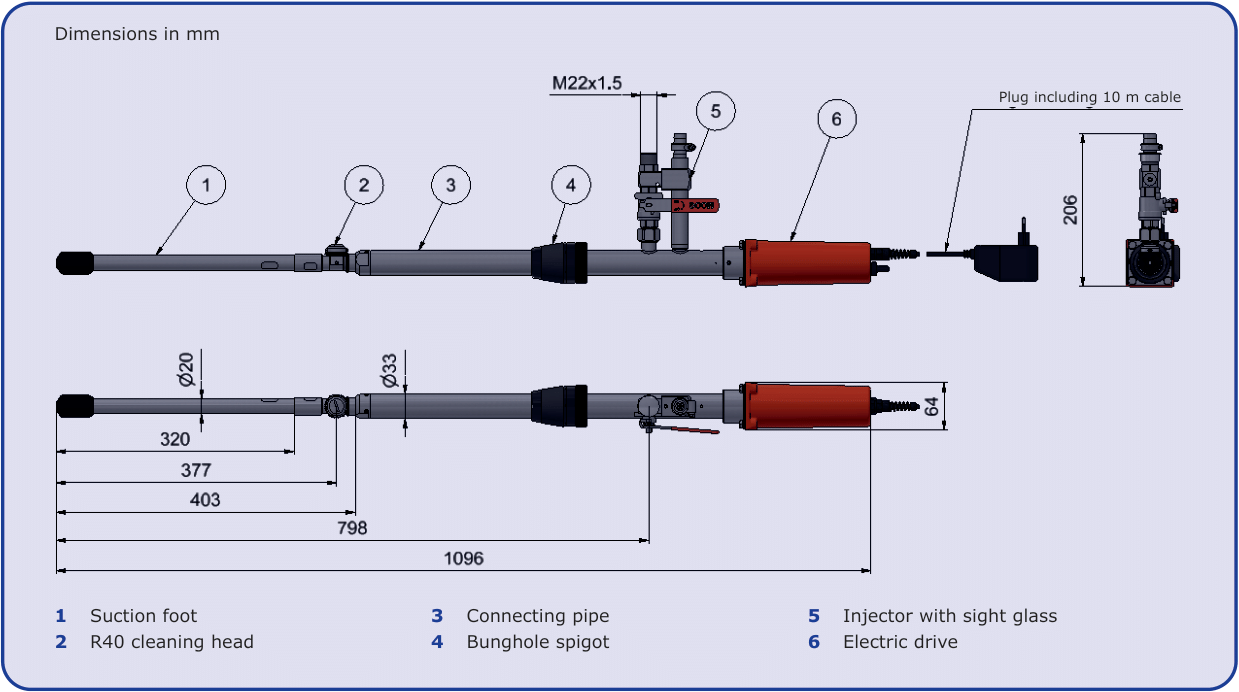

| Dimensions: | 1096 × 206 × 64 mm (43.1 × 8.1 × 2.5 inch) |
| Weight: | 5.3 kg (11.7 lbs) |
| Approvals: | CE, CSA |
| Item no.: | 016.0215.0 |
The BRA Simplex is a mobile handheld unit for cleaning the inside of barrels directly at the storage location. It consists of a rotating cleaning head, an electric motor and a connecting pipe and is inserted through the bunghole (larger than Ø 37 mm) into barrels with a capacity of 225 to 600 litres.
Via the connecting pipe, the electric motor drives the R40 cleaning head, which rotates at 17 rpm and covers the entire inside of the barrel (360°) with its two nozzles. The slowly turning, three-dimensionally rotating cleaning head ensures effective and gentle cleaning of the entire inner surface of the wine barrel and removes tartar without damaging the wood structure. During and after cleaning, an integrated injector system extracts the dirty water through the suction pipe – the vacuum required for this is generated by the high pressure of the cleaning water. Cleaning and extraction thus take place in a single operation; a complete cycle takes approx. 3–5 minutes.
Thanks to the modular design, the cleaning head, motor and connecting pipe can be replaced individually, so the unit is quickly ready for use again after servicing. The bunghole fixture ensures a secure hold on the barrel; power is supplied via a plug with a 10 m cable. The BRA Simplex is durable, easy to maintain and runs very quietly. Contact us directly to find out more about accessories and spare parts.

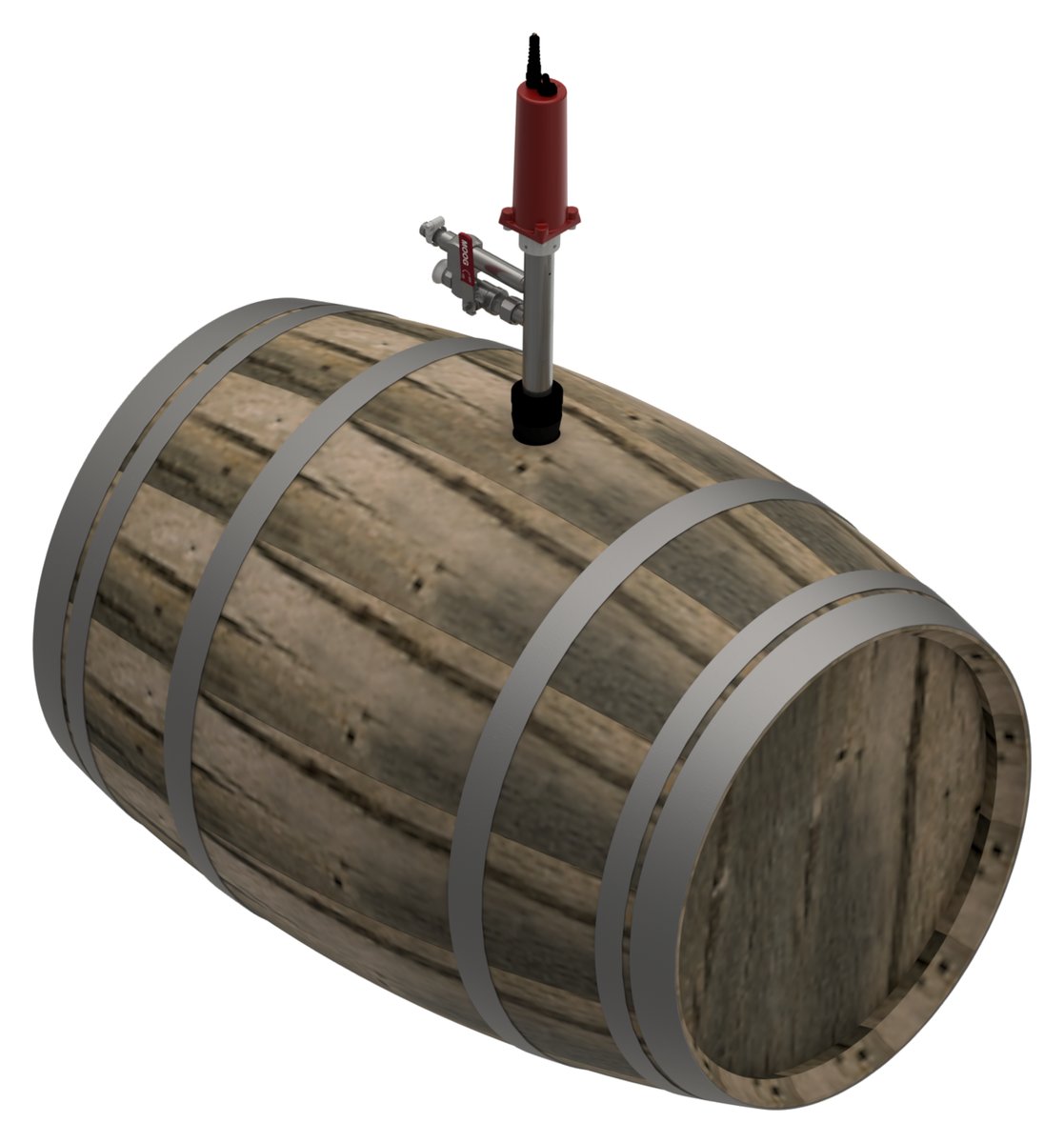

Application example: cleaning a barrel

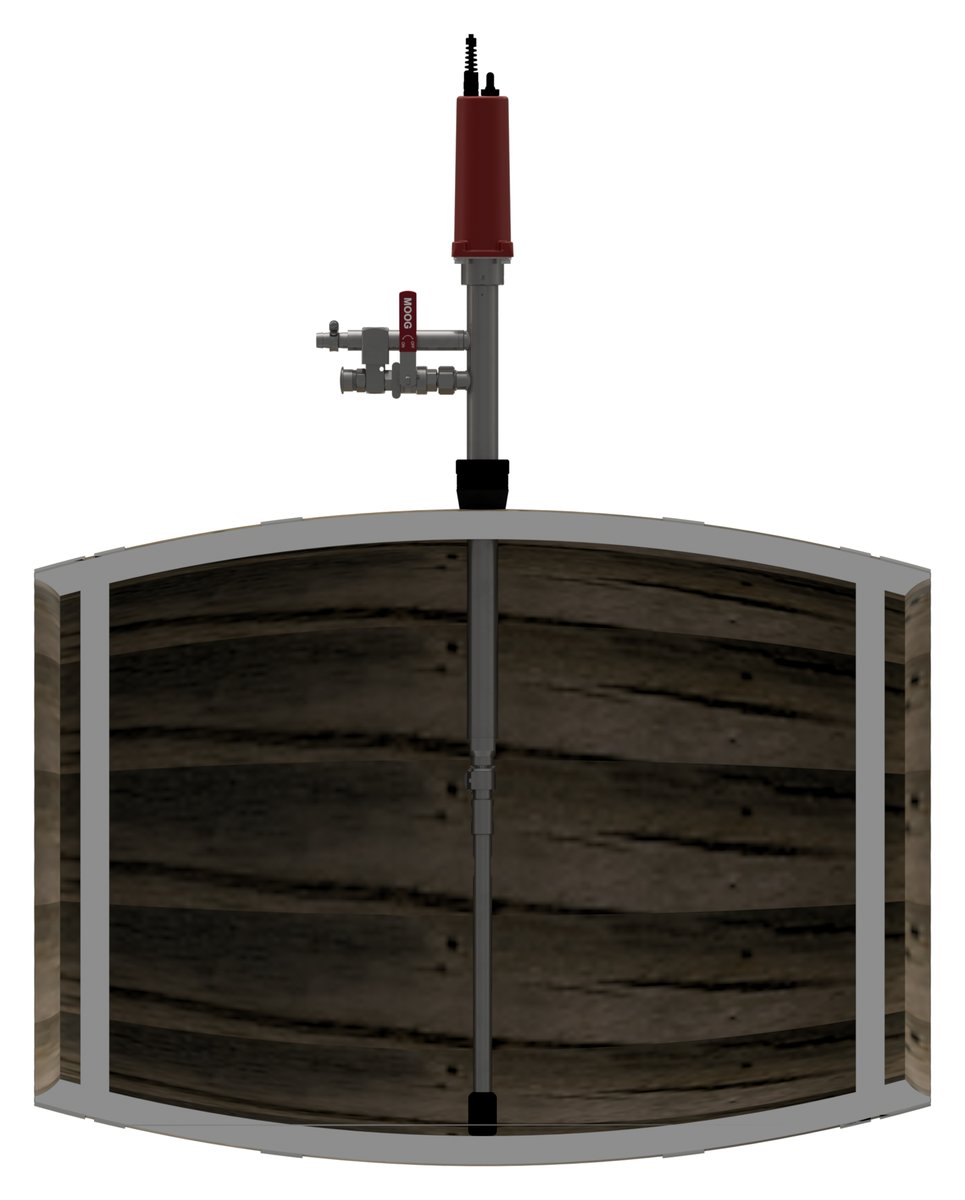

Sectional view: cleaning head inside the barrel
