Barrel cleaner BRM Compact
Compact mobile barrel cleaner with water drive
- Water-hydraulic drive
- Cleaning from below through the bunghole
- Compact stainless steel trolley
- 360° jet coverage
- For barrels from 225 to 600 litres
- For insertion openings larger than Ø 38 mm
- Driven by a compact water turbine
- No power supply needed, start via the ball valve
- Speed 10–30 rpm, adjustable via water volume
- 2 nozzles, 0°, 5° or 15° as required
- Complete cleaning cycle in approx. 3–5 min
- Optional loading ramp for the barrel
- Very low operating noise
| Technical data | Value |
|---|---|
| Drive: | water-hydraulic (water turbine) |
| Cleaner: | HRK cleaner with RK cleaning head |
| Working pressure: | 80 – 120 bar (1160 – 1740 psi) |
| Flow rate: | 13 – 20 LPM (3.4 – 5.3 US gpm) |
| Max. temperature: | 90 °C (194 °F) |
| Speed: | 10 – 30 rpm (adjustable via water volume) |
| Jet coverage: | 360° |
| Nozzles: | 2, 0° / 5° / 15°, M4 |
| Cleaning cycle: | approx. 3 – 5 min, depending on soiling |
| Connection: | M22 × 1.5 / G 1/2" / G 3/8" |
| Insertion opening: | bunghole larger than Ø 38 mm (1.50 inch) |
| Barrel sizes: | 225 – 600 litres (59 – 159 US gal) |
| Material cleaner: | stainless steel 1.4301 |
| Material trolley: | stainless steel 1.4301 |
| Seals: | FPM (Viton®) / EPDM / FDA |

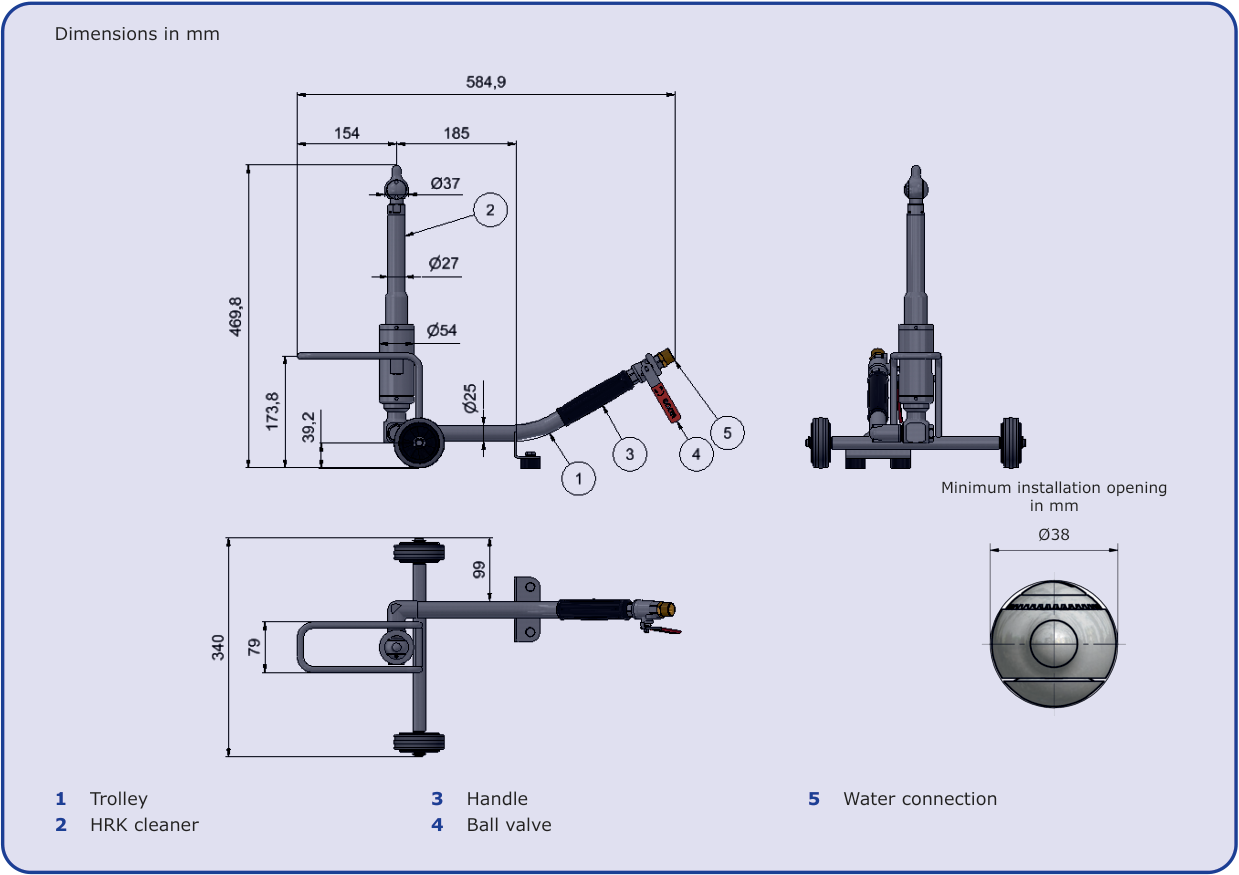

| Dimensions (L × W × H): | 584.9 × 340 × 469.8 mm (23.0 × 13.4 × 18.5 inch) |
| Approvals: | CE |
| Item no.: | 126.12.03.00 |
The BRM Compact is a compact, mobile barrel cleaner with water drive for cleaning the inside of barrels with a capacity of 225 to 600 litres. This unit, unique worldwide, is designed for maximum efficiency. It consists of an HRK cleaner, a compact mobile frame and an optionally available loading ramp.
The barrels remain on the rack during cleaning; the barrel cleaner is inserted directly into the barrel from below. The very compact, spherical high-pressure spray head can be inserted quickly and without damage through the bunghole (larger than Ø 38 mm), and the dirty water drains out through the bunghole. A compact water turbine uses the energy of the cleaning water to drive the cleaning head at the same time – the unit works without a cable, and cleaning starts as soon as the ball valve is opened. The head rotates at 10–30 rpm and covers the entire inside of the barrel (360°) with its two nozzles. The speed can be varied via the water volume and adapted to the available water volume with different nozzles. Depending on the degree of soiling, a complete cycle takes approx. 3–5 minutes. Thanks to the modular design, the individual components can be replaced, so the unit is quickly ready for use again after servicing. The BRM Compact is durable, easy to maintain and runs very quietly. Contact us directly to find out more about accessories and spare parts.
Application example: barrel on the loading ramp
Application example: cleaning from below through the bunghole
Sectional view: cleaning head inside the barrel
