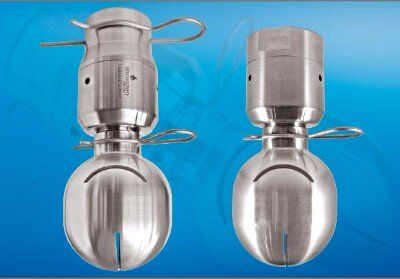

Turbo SSB 125 Rotating Nozzle

GEA Breconcherry Turbo SSB 125 Rotationsdüsen (strahlbildend, langsame Rotation)

Plain bearing nozzle with slow rotation

  • 360° low pressure plain bearing nozzle
  • slow rotation and small amounts of liquid
  • FDA compliant & EX certified
  • acid, alkali and temperature resistant
  • compact dimensions
  • self-cleaning, hygienic, low-wear
  • high operational reliability
Technical Data Value
Max. cleaning diameter: 10 meters
Spray pattern: 360°
Pressure range: 2 – 6 bar
Flow rate: 200 – 408 LPM (12,0 – 24,5 m³/h)
Insertion opening: BSP/NPT min. Ø 85 mm, Splint min. Ø 110 mm
Mounting position: arbitrary, preferrably vertical downwards
Weight: approx. 0,74 KG
Materials: Stainless Steel 316L (1.4404), C.PTFE, PTFE
Pipe connection: 1,25″ Internal Thread BSP (NPT)
Optional Pipe Connections: 1,5″ Splint, DN40 Splint
Nozzle characteristics: Ball with slots
Certificates: 3.1, 2.2, ATEX, FDA Regulation (EC) No 1935/2004
Max. operating temperature: 95°C (203°F)
Max. ambient temperature: 140°C (284°F), 30 Min.
Operating recommendation: It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage.

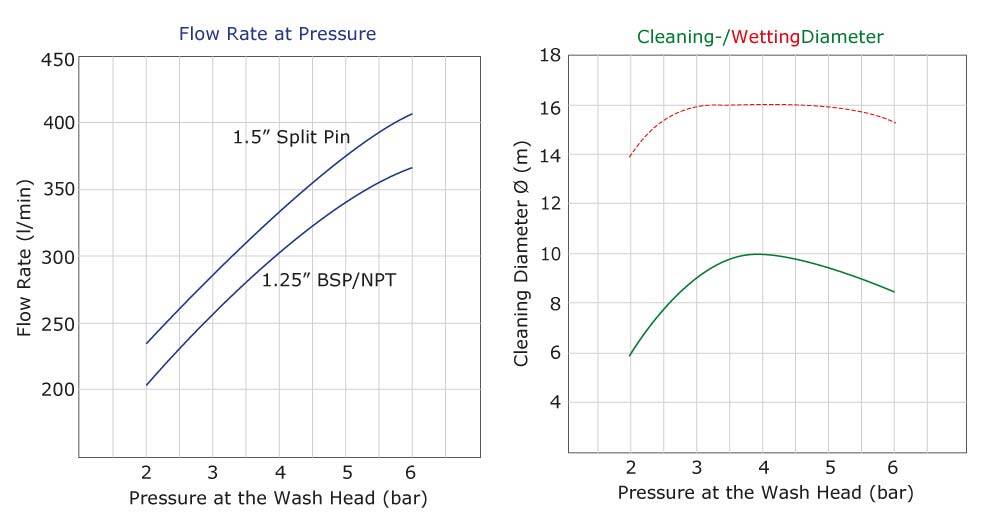

Optimal Operating

The pressure range for operating a Turbo SSB 125 is 2 – 6 bar at the cleaning nozzle.
With a flow rate of 200 – 408 liters/minute, a cleaning diameter of 6 – 10 meters is achieved.

The Turbo SSB 125 is a slowly rotating rotary nozzle. During operation, the liquid flowing through causes the ball head to rotate evenly and with a brake. Flat liquid jets with a long range emerge through slits. The slow rotation of the nozzle favors an effective bundled liquid impact with high impact effect. This achieves a cleaning effect of up to 10 meters in diameter. Turbo SSB are available in 3 sizes and many connection types. Common areas of application for Turbo SSB rotary nozzles can be found in the dairy, food, beverage, pharmaceutical and chemical industries for cleaning production, process or transport containers.

The Turbo SSB is equipped with an extremely low-wear plain bearing system that is permanently immersed in liquid, which means that extremely long service lives can be achieved. Even brief exposure to steam or compressed air does not cause any damage. Even after years of constant use in a wide variety of industrial applications, no operational failures caused by wear and tear have been observed. The nozzle can be easily cleaned of solids by means of a removable ball head. The Turbo SSB meets the highest hygiene standards and the requirements of the FDA and is suitable for use in potentially explosive areas.

GEA Breconcherry Turbo SSB 125 Gewindebefestigung

Threaded Connection

Turbo SSB 125 standard devices are equipped with a 1,25″ cylindrical internal thread BSP (British Standard PIPE according to DIN ISO 228). The device is optionally available with a 1,25″ conical internal thread NPT (National Pipe Taper, American pipe thread for self-sealing connections).

GEA Breconcherry Turbo SSB 125 Splintbefestigung

Splint Connection

The Turbo SSB 125 is optionally available with 1,5″ or DN40 Split pin connection. The Split pin connection ensures that the cleaning nozzle is attached without dead space. Split pin versions have an approx. 15% higher flow rate compared to other conection types.

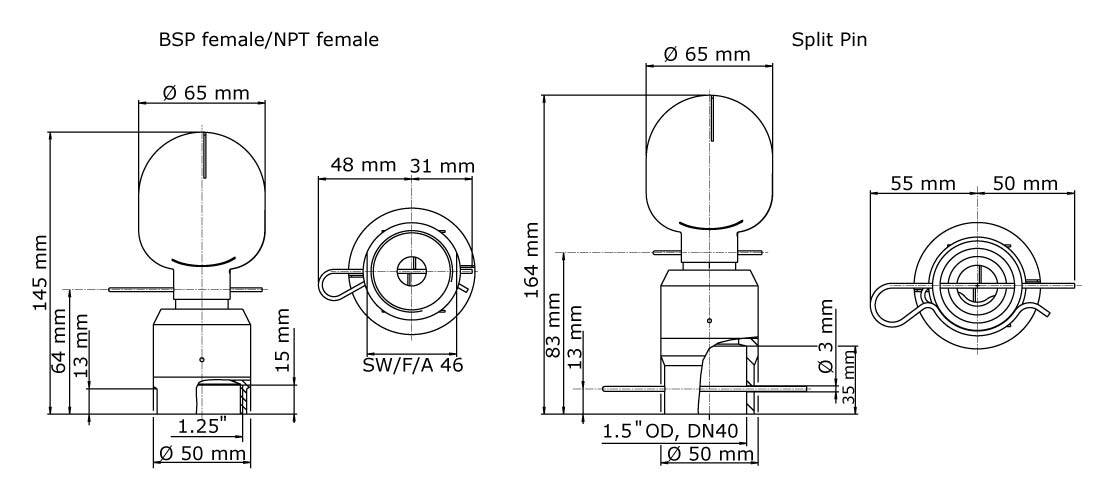

Turbo SSB 125 Threaded and Split pin connection

Connection Spray Pattern Pipe* Product Code Materials Certificates Article number
*corresponds to the maximum pipe OD of the pipe on which the nozzle is to be installed (inches or mm). Split pin versions have approx. 15% higher flow-rates. Recommended standard devices with high storage probability are colored in blue.
1,25″ IG-BSP 360° 1,25″ TSSB125AF-360-BSP 316L/C.PTFE ATEX+FDA, 3.1 4660-2451-113
1,25″ IG-BSP 360° 1,25″ TSSB125F-360-BSP 316L/PTFE FDA, 3.1 4660-2448-112
1,25″ IG-NPT 360° 1,25″ TSSB125AF-360-NPT 316L/C.PTFE ATEX+FDA, 3.1 4660-2558-417
1,25″ IG-BSP 360° 1,25″ TSSB125F-360-NPT 316L/PTFE FDA, 3.1 4660-2453-212
1,5″ Split pin 360° 38,10 TSSB125AF-360-PF 316L/C.PTFE ATEX+FDA, 3.1 4660-2452-413
1,5″ Split pin 360° 38,10 TSSB125F-360-PF 316L/PTFE FDA, 3.1 4660-2454-412
DN40 Split pin 360° 41 TSSB125AF-360-DN40 316L/C.PTFE ATEX+FDA, 3.1 4660-2558-415
DN40 Split pin 360° 41 TSSB125F-360-DN40 316L/PTFE FDA, 3.1 4660-2558-416

Installation Lance

GEA Breconcherry Turbo SSB Installationslanze

Materials: Stainless Steel 1.4404 (316L), EPDM, FKM
Certificates: 3.1, 2.2
Device Connection: 1,25″ AG-BSP (1,5″ Split pin)
Tank Connection: Flange as needed
Sensor: with/without SMW 100

SMW 100 Fluid Sensor

GEA Breconcherry SMW100

Materials: 1.4305, PEEK
Connection Type: Welding Sleeve
Function: Sensor surge is displayed every 20 seconds

The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 27.10.2023-71427321893-1888948-71042)
