Dropforming rotating nozzles

For privacy reasons YouTube needs your permission to be loaded.
I Accept

Dropforming rotating nozzles produce a rapid rotation with even the slightest pressure, with an immediate, even distribution of liquid. We offer you a comprehensive selection of different sizes, spray patterns and consumption values. Most of our rapidly rotating cleaning nozzles are hydrostatically mounted, which means that extremely long operating times can be achieved without any maintenance or downtime. We offer FDA-compliant rotating nozzles with EX exemption or EX type approval, ideal for almost all industrial cleaning applications.

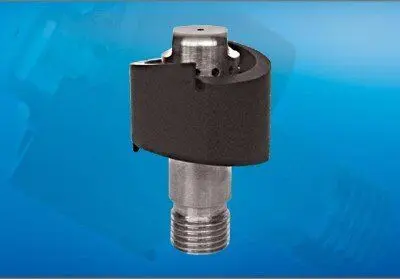

Turbodisc 25 EN

Cleaning ø:up to 1,5 Meters
Pressure Range: 2 - 4 bar
Flowrate:40 - 60 LPM
2,4 - 3,6 m³/h

Turbodisc EN

Cleaning ø:up to 5 Meters
Pressure Range: 2 - 4 bar
Flowrate:40 - 245 LPM
2,4 - 14,7 m³/h

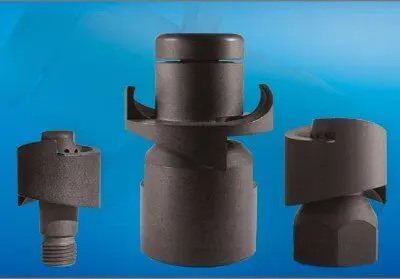

Chemidisc EN

Cleaning ø:up to 5 Meters
Pressure Range: 2 - 4 bar
Flowrate:40 - 220 LPM
2,4 - 13,2 m³/h

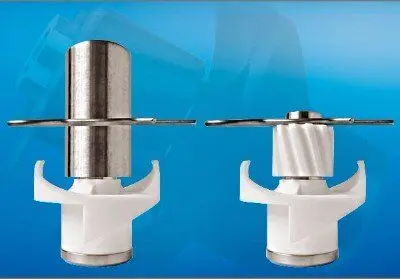

Clipdisc / Sanidisc EN

Cleaning ø:up to 5 Meters
Pressure Range: 2 - 4 bar
Flowrate:93 - 278 LPM
5,6 - 16,7 m³/h

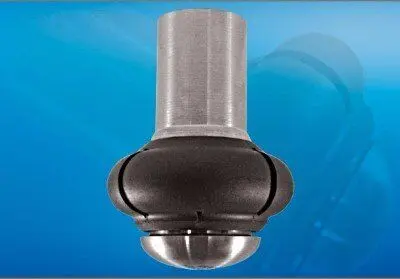

Torus 50/75 EN

Cleaning ø:up to 3,3 Meters
Pressure Range: 1 - 4 bar
Flowrate:15 - 77 LPM
0,9 - 4,6 m³/h

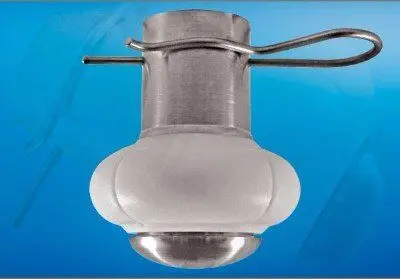

Torus 100 EN

Cleaning ø:up to 4,8 Meters
Pressure Range: 1 - 6 bar
Flowrate:50 - 118 LPM
3,0 - 7,1 m³/h

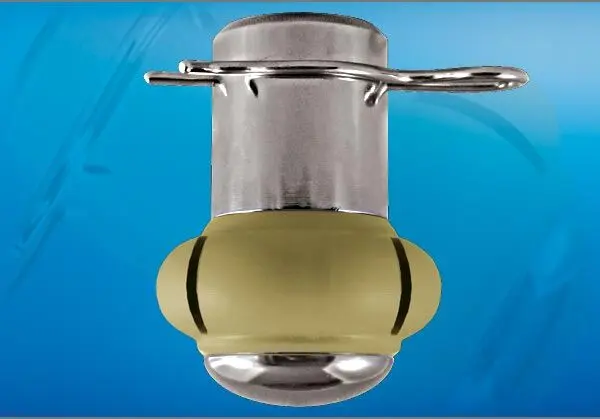

Torus 50/75 PEEK EN

Cleaning ø:up to 3,3 Meters
Pressure Range: 2 - 4 bar
Flowrate:17 - 77 LPM
1,0 - 4,6 m³/h

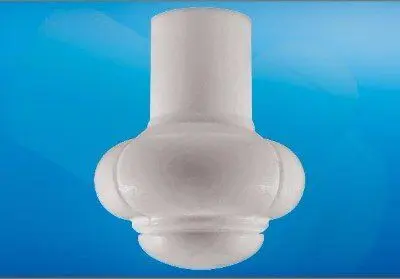

Chemitorus 50/75 EN

Cleaning ø:up to 3,3 Meters
Pressure Range: 1 - 4 bar
Flowrate:15 - 67 LPM
0,9 - 4,0 m³/h

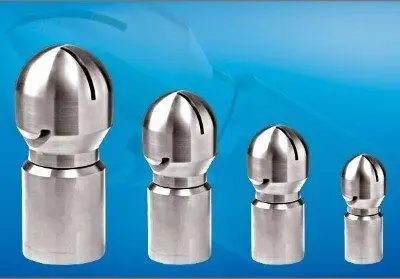

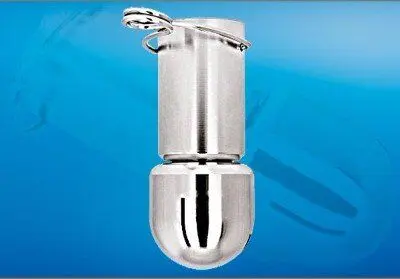

Rotiko EN

Cleaning ø:up to 2,4 Meters
Pressure Range: 1,5 - 4 bar
Flowrate:16,8 - 76,5 LPM
1,01 - 4,59 m³/h

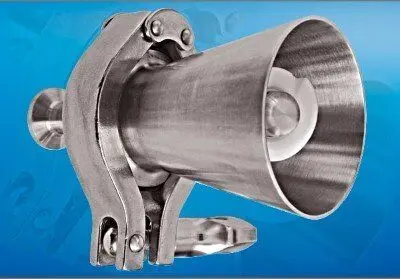

Turbo CW 25/75 EN

Cleaning ø:with 200 mm / 1 m ø
Pressure Range: 2 - 8 bar
Flowrate:40 - 150 LPM
2,4 - 9,0 m³/h

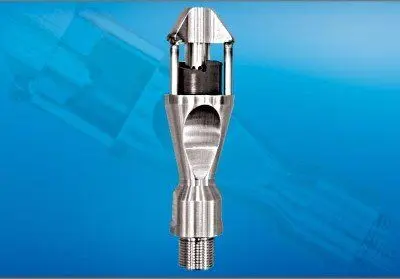

Caskwasher EN

Cleaning ø:up to 1,5 Meters
Pressure Range: 2 - 4 bar
Flowrate:40 - 60 LPM
2,4 - 3,6 m³/h
