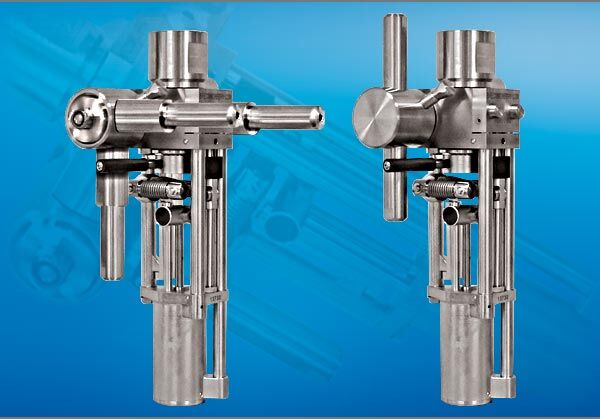

Fury 600 Jet cleaner
The Fury 600 jet cleaner impresses with high flow rates
- proven in use
- high flow rates
- short cleaning times
- also available as FURY 400 variant
- different spray patterns available
- very easy to maintain drive
| Technical Data | Value |
|---|---|
| Max. Cleaning Diameter: | 17 meters |
| Spraypattern: | 360° and 180° up- and downwards |
| Pressure-range: | 4 – 12 bar |
| Flowrate: | 50 – 200 LPM (3,0 – 12,0 m³/h) |
| Insertion Opening: | min. Ø 225/140 mm (depending on the nozzle) |
| Mounting position: | vertical |
| Weight: | approx. 2,3 KG |
| Materials: | Stainless Steel 316L (1.4404), PTFE |
| Standard connection: | 1″ internal thread BSP/NPT |
| Nozzle characteristic: | 2 x 4,5 mm, 2 x 6,5 mm, 4 x 4,5 mm, 4 x 6,5 mm nozzles |
| Certificates: | on demand |
| max. Operating temperature: | 120°C (248°F) |
| max. ambient temperature: | 140°C (284°F), 30 Min. |
| Operating recommendation: | It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage. |
Optimal Operation
The pressure range for operating a Fury 600 Jetcleaner is at 4 – 12 bar at the cleaning nozzle.

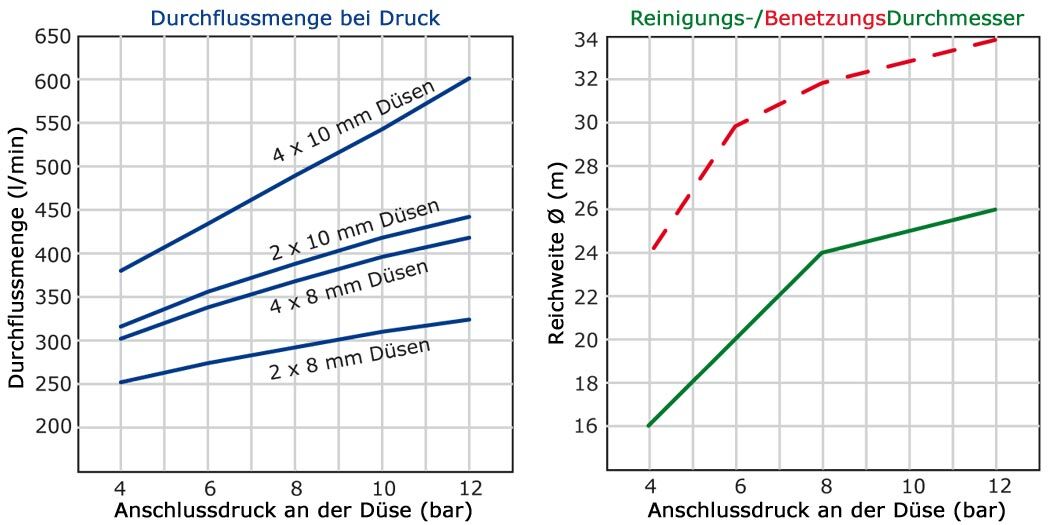

With a flow rate of 250 – 600 liters/minute, a cleaning diameter of 16 – 26 meters is achieved.
The FURY 600 is a compact cleaning device with a simple drive that has only one piston. In operation, the nozzles of the FURY oscillate at a 90° angle, while the head of the FURY rotates on its own axis. This produces extremely powerful water jets with a long range. The FURY is powered solely by the cleaning fluid, with only 5% of the medium used for propulsion. 95% of the cleaning medium passes through the nozzles, producing maximum mechanical cleaning action. The FURY 600 is ideal for applications where strict hygiene and product cleanliness requirements are essential. The versatile FURY 600 is available with 180° and 360° spray patterns.
It is designed for use in process vessels, storage tanks as well as transport containers. The FURY tank cleaner is specifically used in beverage and dairy processing, breweries, pharmaceutical, chemical, nuclear and transportation industries. With its simple and compact design, the FURY 600 can be permanently installed as well as mobile. The FURY 600 is driven by a slow rotating piston. This makes it unique among tank cleaners in its class.
The FURY 600 requires only 5% of the used cleaning medium for the drive. Since the FURY 600 does not contain a complicated drive or high-speed turbines, it is very easy to maintain.
With its simple drive mechanism, the FURY 600 produces even coverage cleaning. Its specially designed nozzles produce jets of unsurpassed mechanical action. The FURY 600 convinces with guaranteed optimal cleaning results.
The slow operating speed of the FURY 600 guarantees low wear and tear of the components. The open design of the FURY 600 makes maintenance and inspection very easy.
The 4-nozzle model of the Fury 600 is only available in 180° design.
Fury 600 with 1,5″ BSP thread
| Connection | Nozzles | Pipe* | Product code | Materials | Zertifikate | Artikelnummer |
|---|---|---|---|---|---|---|
| *corresponds to the max. pipe outer diameter of the pipe on which the machine is to be installed (inch or mm). Other materials on demand. | ||||||
| 1,5″IG-BSP | 2 x 8,0 | 1,5″ | Fury600-2×8-BSP | on demand | 3.1, 2.2 | – |
| 1,5″IG-BSP | 2 x 10,0 | 1,5″ | Fury600-2×10-BSP | on demand | 3.1, 2.2 | – |
| 1,5″IG-BSP | 4 x 8,0 | 1,5″ | Fury600-4×8-BSP | on demand | 3.1, 2.2 | – |
| 1,5″IG-BSP | 4 x 10,0 | 1,5″ | Fury600-4×10-BSP | on demand | 3.1, 2.2 | – |

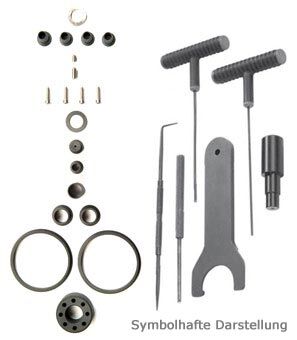

Maintenance Package Fury 600
| Fury 600 | – |
The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 27.10.2023-71427321893-1888948-71042)
