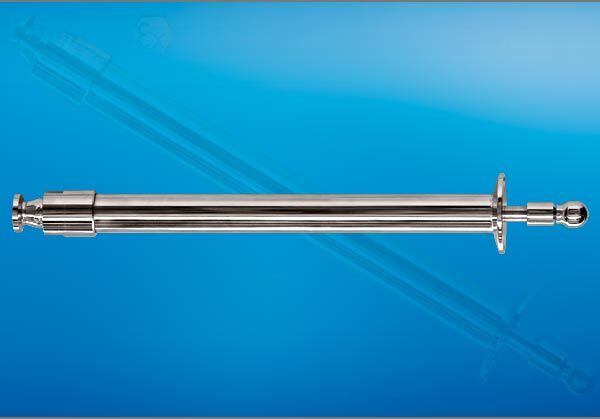

SR1000 Retractor

Extendable rotating nozzle with spring return

  • Version with different nozzle types
  • FDA-compliant & Ex-certified
  • acid, alkali & temperature resistant
  • adaptable design, different stroke widths
  • designed for hygienic operation
  • operation monitoring by sensors possible
Characteristic Value
Spraypattern 90°, 180°, 270°, up- and downwards
Pressure Range 2 – 4 bar

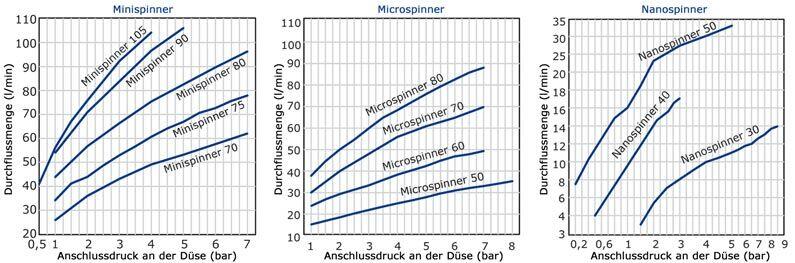

Flowrate 48 – 90 LPM (2,9 – 5,4 m³/h)

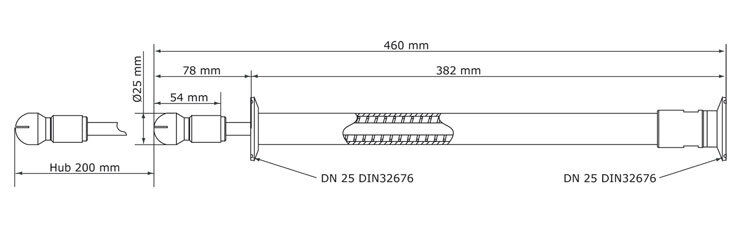

Stroke lenght 50 – 1000 mm
Preferred mounting position arbitrary
Inner thread Mini 3/4″, Micro 3/8″, Nano 1/8″
Installation opening Mini min. Ø 45 mm, Micro min. Ø 30 mm, Nano min. Ø 20 mm
Max. cleaning diameter Mini 4 meters, Micro 2 meters, Nano 1 meter
Materials Stainless Steel 316L (1.4404), 316 (1.4401) Ball Bearings/Feather, Hastelloy (2.4610)
Connection types DN16, DN18, DN25 and others
Certificates 3.1, 2.2, ATEX, FDA Regulation (EC) No 1935/2004
Max. operating temperature 90°C, 194°F
Max. ambient temperature 110°C, 230°F, 30 Min.
Operating recommendation: It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage.

Retractors are extendable cleaning nozzles. By using retractor nozzles, the highest level of safety and hygiene can be achieved. Our selection of retractor nozzles includes devices with spring or compressed air retraction. Nozzle extension in these devices is usually accomplished via fluid pressure. Retractors can be equipped with static spray balls, Chemidisc and Chemitorus series slide bearing nozzles, and high-speed rotating ball bearing nozzles. The position of a retractor nozzle (open/closed) can be checked by means of a magnetic sensor. Our retractors can be adapted to individual needs. Depending on the type of device, FDA conformity as well as EX exemption and stroke widths between 50 mm and 1000 mm are possible.

The SR1000 retractor with ball bearing nozzle is based on a spring return system. The cleaning nozzle is only retracted via the liquid pressure. This requires a pressure of 2 bar or more. The SR1000 is usually equipped with the ball bearing nozzles Nanospinner, Microspinner or Minispinner, the use of other nozzles can be realized via our customer design concept. This product is an open retractor system where there is no closure of the nozzle to the product space. The rotary nozzle can be recessed in the wall or sealed off from the product chamber by a ball valve, for example. In this case, the nozzle is retracted into the container through the open ball valve. The stroke width of this retractor can be between 50 mm and 1000 mm and is individually adapted to customer requirements.

_ MR1 MR2 IS25 SR1000
Sprayhead Chemidisc 25/75, Torus Chemidisc 25/75, Torus Spray ball (fixed) Spinner
Container Connection DN65/2,5 DN65/2,5″ DN80 DN16 to DN200
Extension Fluid pressure Fluid pressure Air Pressure Fluid pressure
Closure Spring tension Airpressure Spring tension Spring tension
Lifting lenght 50 – 300 mm 50 – 300 mm 56 mm 50 – 1000 mm
Sensor open/closed open/closed No Sensor open/closed
Nozzle closure sealant sealant sealant open
Application Pipe cleaning & Cleaning shaded areas Container cleaning, Pipe cleaning Pipe cleaning & Cleaning shaded areas Container cleaning, Pipe cleaning

The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All data are without guarantee. (Stand: 26.10.2023-71427321893-1888948-71042)
