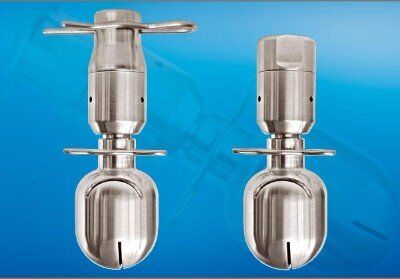

Turbo SSB 40 Rotating Nozzle

Plain bearing nozzle with slow rotation

360° low pressure plain bearing nozzle
slow rotation and small amounts of liquid
FDA compliant & EX certified
acid, alkali and temperature resistant
compact dimensions
self-cleaning, hygienic, low-wear
high operational reliability

Technical Data

Technical Data	Value
Max. cleaning diameter:	3 meters
Spray pattern:	360°
Pressure range:	2 – 5 bar
Flow rate:	35 – 62 LPM (2.1 – 3.7 m³/h)
Insertion opening:	BSP/NPT min. Ø 38 mm, cotter pin min. Ø 57 m
Mounting position:	arbitrary, preferably vertical downwards
Weight:	approx. 0.12 KG
Materials:	Stainless Steel 316L (1.4404), C.PTFE, PTFE
Pipe connection:	3/8″ Internal Thread BSP (NPT)
Optional Pipe Connections:	S1/2″ cotter pin, DN10 cotter pin, DN15 cotter pin, DN20 cotter pin
Nozzle characteristics:	Ball with slots
Certificates:	3.1, 2.2, ATEX, FDA Regulation (EC) No 1935/2004
Max. operating temperature:	95°C (203°F)
Max. ambient temperature:	140°C (284°F), 30 Min.
Operating recommendation:	It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage.

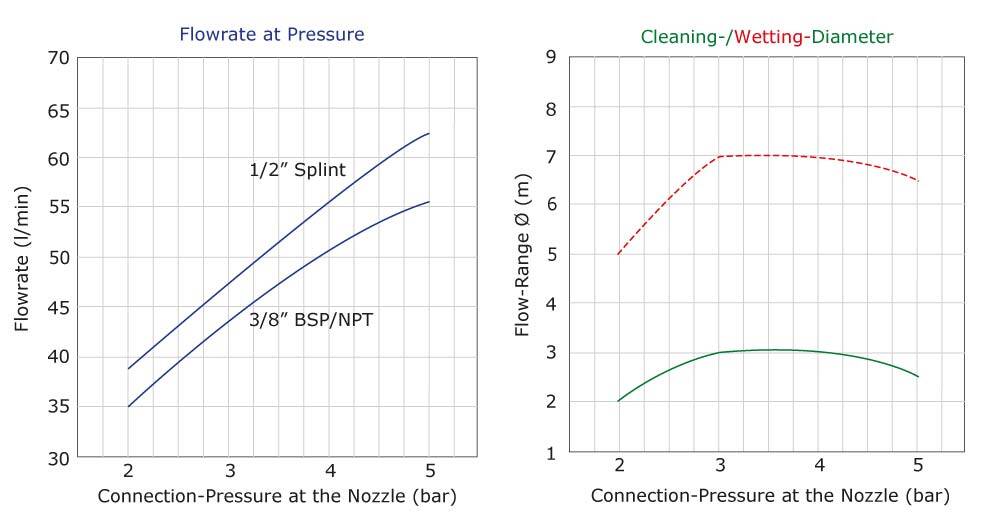

Optimal Operation

The pressure range for operating a Turbo SSB 40 is 2 – 5 bar at the cleaning nozzle.

With a flow rate of 35 – 62 liters/minute, a cleaning diameter of 2 – 3 meters is achieved

The Turbo SSB 40 is a slowly rotating rotary nozzle. During operation, liquid flowing through it sets the spherical head into a steady braked rotation. In the process, flat jets of liquid with a long range emerge through slots. The slow rotation of the nozzle favours an effective bundled liquid impact with a high impact effect. This achieves a cleaning effect of up to 3 metres in diameter. The Turbo SSB is equipped with an extremely low-wear slide bearing system that is permanently flushed with liquid, thus achieving extremely long service lives. Even brief exposure to steam or compressed air does not cause any damage. Mostly, even after years of permanent use in a wide variety of industrial applications, no operational failures caused by wear have been detected.

The nozzle can be easily cleaned of solids by means of a removable ball head. The Turbo SSB meets the highest hygiene standards as well as FDA requirements and is suitable for use in potentially explosive atmospheres. Turbo SSB are available in 3 sizes and many connection types. Common applications for Turbo SSB 40 rotary nozzles are found in the dairy, food, beverage, pharmaceutical and chemical industries for cleaning production, process or transport containers. We recommend installing a 500 micron filter/screen in the CIP supply line close to the nozzle to protect it from clogging or damage by particles.

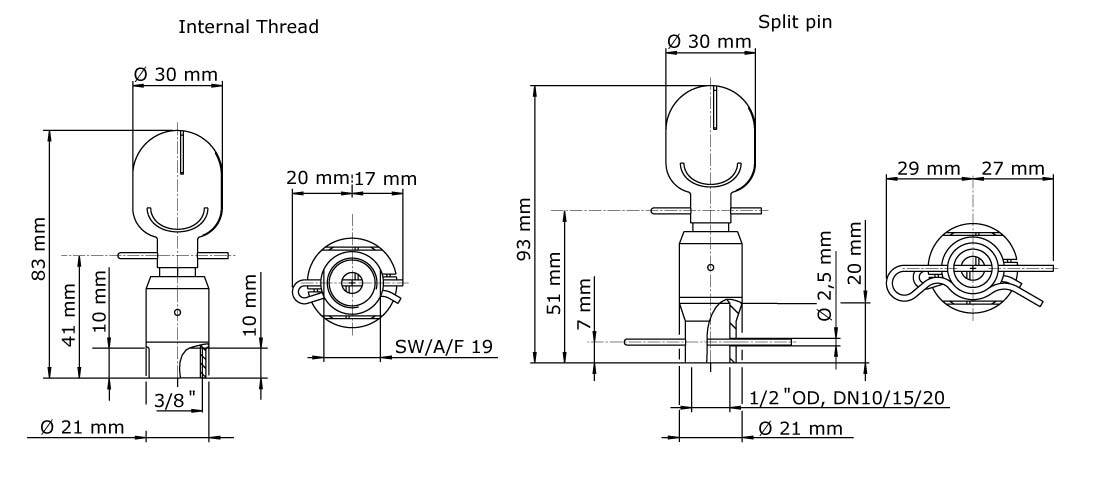

Connection Types

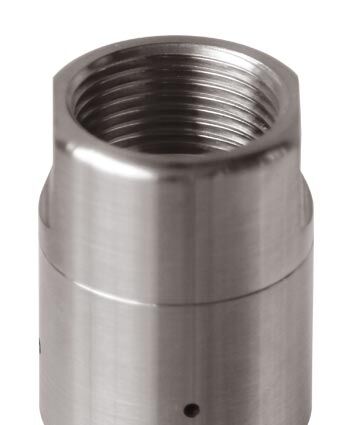

Threaded Connection

Turbo SSB 40 standard devices are equipped with a 3/8″ cylindrical internal thread BSP (British Standard PIPE according to DIN ISO 228). The device is optionally available with a 3/8″ conical internal thread NPT (National Pipe Taper, American pipe thread for self-sealing connections).

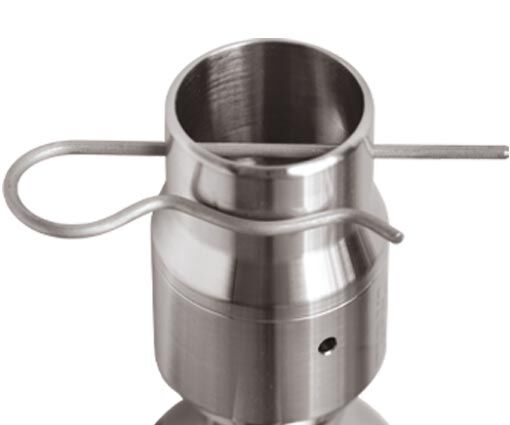

Cotter pin connection

The Turbo SSB 40 is optionally available with 1/2″, DN10, DN15 or DN20 Split pin attachment. The Split pin attachment ensures that the cleaning nozzle is attached without dead space. Split pin versions have an approx. 15% higher flow rate compared to other connection types.

Turbo SSB 40 - Product Selection Connection Types/Variants

Turbo SSB 40 with 3/8″ threaded connection

Connection	Spray pattern	Type	Product code	Materials	EX	FDA	Article number
3/8″ BSP	360°	Standard	TSSB40AF-360-BSP	316L/C-PTFE	✔	✔	4660-2556-113
3/8″ BSP	360°	Standard	TSSB40F-360-BSP	316L/PTFE		✔	4660-2555-112
3/8″ NPT	360°	Standard	TSSB40AF-360-NPT	316L/C-PTFE	✔	✔	4660-2558-213
3/8″ NPT	360°	Standard	TSSB40F-360-NPT	316L/PTFE		✔	4660-2558-212
3/8″ BSP	360°	EPO	TSSB40F-360-BSP-EPO	316L/PTFE		✔	4660-2555-113

Turbo SSB 40 with butt-weld connection (BW)

Connection	Spray pattern	Type	Product code	Materials	EX	FDA	Article number
1/2″ butt weld (BW)	360°	Standard	TSSB40AF-360-BW	316L/C-PTFE	✔	✔	4660-2555-421
1/2″ butt weld (BW)	360°	Standard	TSSB40F-360-BW	316L/PTFE		✔	4660-2555-312
1/2″ butt weld (BW)	360°	EPO	TSSB40AF-360-BW-EPO	316L/C-PTFE	✔	✔	4660-2555-315

Turbo SSB 40 with cotter pin/PIN FIX connection

Connection	Spray pattern	Type	Product code	Materials	EX	FDA	Article number
1/2″ cotter pin/PIN FIX	360°	Standard	TSSB40AF-360-PF	316L/C-PTFE	✔	✔	4660-2557-413
1/2″ cotter pin/PIN FIX	360°	Standard	TSSB40F-360-PF	316L/PTFE		✔	4660-2561-412
DN15 cotter pin/PIN FIX	360°	Standard	TSSB40AF-360-DN15	316L/C-PTFE	✔	✔	4660-2557-419
DN15 cotter pin/PIN FIX	360°	Standard	TSSB40F-360-DN15	316L/PTFE		✔	4660-2561-419
1/2″ cotter pin/PIN FIX	360°	EPO	TSSB40AF-360-PF-EPO	316L/C-PTFE	✔	✔	4660-2547-615
1/2″ cotter pin/PIN FIX	360°	EPO	TSSB40F-360-PF-EPO	316L/PTFE		✔	4660-2547-614
DN15 cotter pin/PIN FIX	360°	EPO	TSSB40AF-360-DN15-EPO	316L/C-PTFE	✔	✔	4660-2561-622
DN15 cotter pin/PIN FIX	360°	EPO	TSSB40F-360-DN15-EPO	316L/PTFE		✔	4660-2561-621

Discontinued variants or available on request only

Connection	Spray pattern	Type	Product code	Materials	EX	FDA	Article number
DN10 cotter pin/PIN FIX	360°	Standard	TSSB40AF-360-DN10	316L/C-PTFE	✔	✔	4660-2557-415
1/2″ cotter pin/PIN FIX	360°	Standard, old no.	TSSB40F-360-PF	316L/PTFE		✔	4660-2557-412

Cotter pin/PIN FIX versions have approx. 15% higher flow rates than the threaded versions.

Standard external surface: Ra ≤ 0.8 µm. EPO: externally electropolished, Ra ≤ 0.4 µm.

All versions are FDA compliant. The EX/ATEX version is only available with C-PTFE. 3.1 certificate for all versions.

Accessories

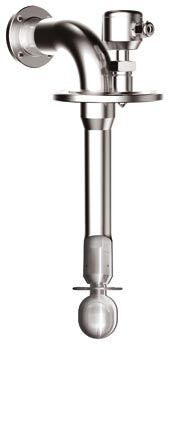

Installation Lance

Materials:	Stainless Steel 1.4404 (316L), EPDM, FKM
Certificates:	3.1, 2.2
Device Connection:	3/8″ male BSP (1/2″ cotter pin)
Tank Connection:	Flange as needed
Sensor:	with/without SMW 100

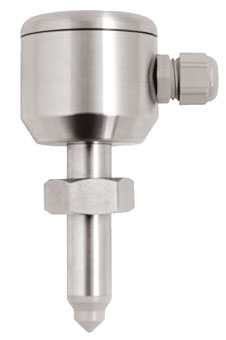

SMW 100 Fluid Control Sensor

Materials:	1.4305, PEEK
Connection Type:	welding sleeve
Function:	Sensor surge is displayed every 20 seconds

The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 27.10.2022-71427321893-1888948-71042)
