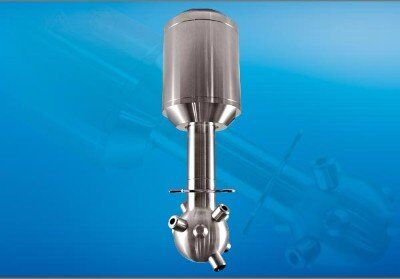

Troll Ball 3″ Rotating Nozzle

GEA Breconcherry Troll Ball 3" Rotationsdüsen (strahlbildend, langsame Rotation)

Plain bearing, rotating nozzle with slow rotation and a strong cleaning effect

  • low pressure plain bearing 360° rotating nozzle
  • slow radiation with low consumption values
  • FDA compliant & EX certified
  • acid, alkali and temperature resistant
  • compact dimensions
  • self-cleaning, hygienic, low-wear
  • high operational reliability
Technical Data Value
Max. cleaning diameter: 7 meters
Spray pattern: 360° and 180° up-, downwards
Pressure range: 3 – 12 bar
Flow rate: 110 – 270 LPM (6,6 – 16,2 m³/h)

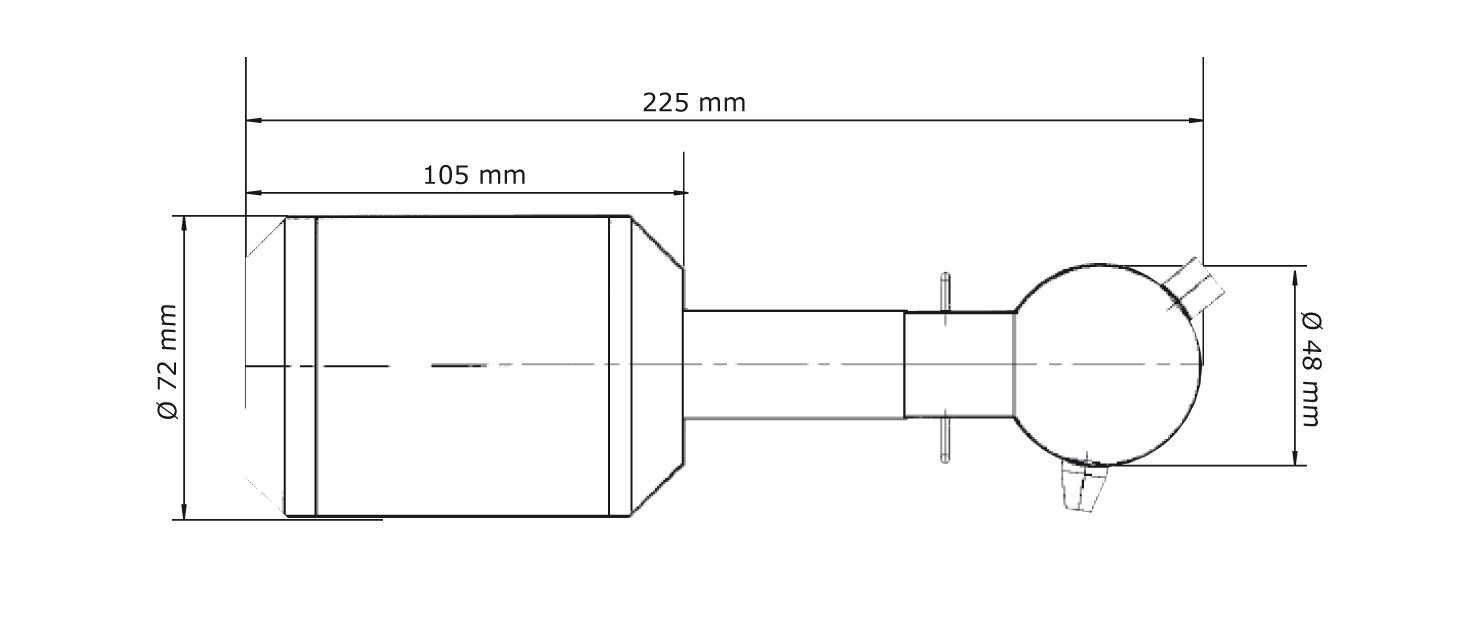

Insertion opening: min. Ø 80 mm
Mounting position: arbitrary, preferrably vertical downwards
Weight: approx. 2,3 KG
Materials: Stainless Steel 316L (1.4404), 316 (1.4401), C.PTFE, PTFE, (PEEK)
Pipe connection: 1,5″ Internal Thread BSP, BSPT (NPT)
Nozzle characteristics: Ball with slots
Certificates: 3.1, 2.2, FDA Regulation (EC) No 1935/2004
Max. operating temperature: 95°C (203°F)
Max. ambient temperature: 140°C (284°F), 30 Min.
Operating recommendation: It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage.


GEA Breconcherry Troll Ball 3

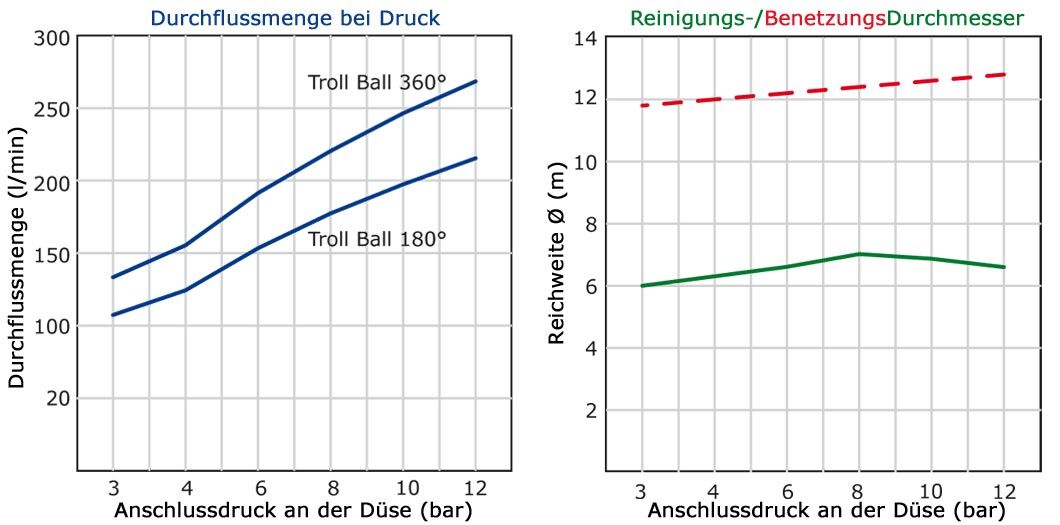

Optimaler Betrieb

Der Druckbereich für den Betrieb eines Troll Ball 3″ liegt bei 3 – 12 bar an der Reinigungsdüse.
Mit einer Durchflussmenge von 110 – 270 Litern/Minute wird ein Reinigungsdurchmesser von 6 – 7 Metern erreicht.

GEA Breconcherry Troll Ball Spritzmuster

Reinigungsfokus 360°, Hauptwirkungsbereich horizontal und aufwärts, entwickelt für Standard-Reinigungsanwendungen,
Alternative: FanJet Typ B

Reinigungsfokus 360°, Hauptwirkungsbereich horizontal und aufwärts, entwickelt für Installation kopfüber mit Wirkungsbereich nach oben, Alternative: FanJet Typ F

Reinigungsfokus 180°, Hauptwirkungsbereich horizontal und nach unten, entwickelt für eine Installation in offenen Behältertypen, Alternative: FanJet Typ E

Reinigungsfokus 180°, Hauptwirkungsbereich horizontal und nach oben, entwickelt für die Deckenreinigung

The Troll Ball is a rotating cleaning nozzle whose ball head is equipped with drillholes instead of slots. The ball-bearing-free and wear-resistant drive system generates a slow rotation in which strong, bundled liquid jets with high impact force are formed. The individual jets cover each other, which means that a complete 360° cleaning action is achieved. Troll Balls are also available in 180° variants and with attached flat jet or bundle nozzles to improve coverage or increase the jet strength. Troll Ball rotating nozzles are robust and almost indestructible and can be easily serviced or repaired in the event of a defect. Every component of a Troll Ball is available as a spare part.

The simple and effective drive system of the TROLL BALL 3″ creates a slow and constant rotation.
This process provides continuous cleaning with different cleaning media and a wide temperature range. The TROLL BALL has few moving parts, providing a compact, reliable, and low-maintenance cleaning solution. The TROLL BALL is ideal as a replacement for fixed or rotating spray balls.

The cleaning fluid drives a simple motor that produces constant rotation of the ball head. The entire cleaning liquid flows with effective force through the few holes in the spray ball. The specially developed design of the bores creates a good jet strength with a minimum of liquid. An additional nozzle cleans the body and the inlet nozzles of the container. The high-energy drops provide very effective impact up to 3,5 m (r). This ensures reliable cleaning of containers up to 7 m in diameter with just a single nozzle.

The TROLL BALL meets the hygiene and material requirements of the FDA. It can be used in the pharmaceutical, food, biotech, beverage and many other hygiene-conscious industries. The TROLL BALL is available in 180° and 360° upwards and downwards versions and also as a Troll Ball 2″ version.

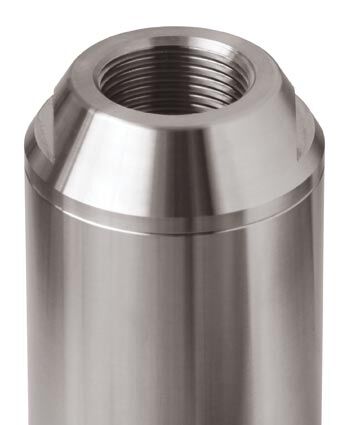

GEA Breconcherry Troll Ball Gewindebefestigung

Threaded Connection

Troll Ball 3 standard devices are equipped with a 3/4″ cylindrical internal thread BSP (British Standard PIPE according to DIN ISO 228). The device is optionally available with a 3/4″ conical internal thread NPT (National Pipe Taper, American pipe thread for self-sealing connections).

Troll Ball 3″ BSP Threaded Connection

Connection Spraypattern Spraypattern Product-Code Materials Certificates Article Number
Recommended standard devices with high storage probability are shown in blue.
1,5″ IG-BSP 360° standard Type C TB3AF-C360-BSP 316L/C.PTFE FDA, 3.1
1,5″ IG-BSP 360° standard Type C TB3F-C360-BSP 316L/PTFE FDA, 3.1
1,5″ IG-BSP 180° downwards Type G TB3AF-G180-BSP 316L/C.PTFE FDA, 3.1
1,5″ IG-BSP 180° downwards Type G TB3F-G180-BSP 316L/PTFE FDA, 3.1 4660-2227-112
1,5″ IG-BSP 180° upwards Type H TB3AF-H180-BSP 316L/C.PTFE FDA, 3.1
1,5″ IG-BSP 180° upwards Type H TB3F-H180-BSP 316L/PTFE FDA, 3.1
1,5″ IG-BSP 360° inverted Type D TB3AF-D360-BSP 316L/C.PTFE FDA, 3.1
1,5″ IG-BSP 360° inverted Type D TB3F-D360-BSP 316L/PTFE FDA, 3.1

Troll Ball 3″ NPT Threaded Connection

Connection Spraypattern Spraypattern Product-Code Materials Certificates Article Number
Recommended standard devices with high storage probability are shown in blue.
1,5″ IG-NPT 360° standard Typ C TB3AF-C360-NPT 316L/C.PTFE FDA, 3.1 4660-2223-213
1,5″ IG-NPT 360° standard Typ C TB3F-C360-NPT 316L/PTFE FDA, 3.1 4660-2223-212
1,5″ IG-NPT 180° downwards Typ G TB3AF-G180-NPT 316L/C.PTFE FDA, 3.1
1,5″ IG-NPT 180° downwards Typ G TB3F-G180-NPT 316L/PTFE FDA, 3.1
1,5″ IG-NPT 180° upwards Typ H TB3AF-H180-NPT 316L/C.PTFE FDA, 3.1
1,5″ IG-NPT 180° upwards Typ H TB3F-H180-NPT 316L/PTFE FDA, 3.1
1,5″ IG-NPT 360° inverted Typ D TB3AF-D360-NPT 316L/C.PTFE FDA, 3.1
1,5″ IG-NPT 360° inverted Typ D TB3F-D360-NPT 316L/PTFE FDA, 3.1

Troll Ball 3″ BSPT Gewindeanschluss

Connection Spraypattern Spraypattern Product-Code Materials Certificates Article Number
Recommended standard devices with high storage probability are shown in blue.
1,5″ IG-BSPT 360° standard Typ C TB3AF-C360-BSPT 316L/C.PTFE FDA, 3.1 4660-2222-113
1,5″ IG-BSPT 360° standard Typ C TB3F-C360-BSPT 316L/PTFE FDA, 3.1 4660-2102-999
1,5″ IG-BSPT 180° downwards Typ G TB3AF-G180-BSPT 316L/C.PTFE FDA, 3.1
1,5″ IG-BSPT 180° downwards Typ G TB3F-G180-BSPT 316L/PTFE FDA, 3.1
1,5″ IG-BSPT 180° upwards Typ H TB3AF-H180-BSPT 316L/C.PTFE FDA, 3.1
1,5″ IG-BSPT 180° upwards Typ H TB3F-H180-BSPT 316L/PTFE FDA, 3.1
1,5″ IG-BSPT 360° inverted Typ D TB3AF-D360-BSPT 316L/C.PTFE FDA, 3.1
1,5″ IG-BSPT 360° inverted Typ D TB3F-D360-BSPT 316L/PTFE FDA, 3.1

Installation Lance

GEA Breconcherry Turbo SSB Installationslanze

Materials: Stainless Steel 1.4404 (316L), EPDM, FKM
Certificates: 3.1, 2.2
Device Connection: 3/8″ AG-BSP (1/2″ Splint)
Tank Connection: Flange as needed
Sensor: with/without SMW 100

SMW 100 Fluid Control Sensor

GEA Breconcherry SMW100

Materials: 1.4305, PEEK
Connection Type: welding sleeve
Function: Sensor surge is displayed every 20 seconds

Maintenance packages PTFE

blank

Consisting of:
#70177 Controler: 4660-6240-020
#70115 Socket: 4660-6230-020
#70368 Seal: 4660-6280-020
Troll Ball 3″ (ATEX)

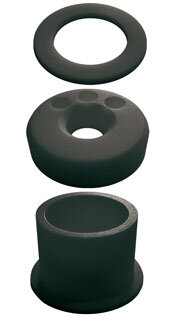

Maintenance packages C.PTFE

GEA Breconcherry Regler, Buchse, Dichtung C.PTFE

Consisting of:
#70516 Controler: 4660-6250-030
#70515 Socket: 4660-6240-030
#70517 Seal: 4660-6260-030
Troll Ball 3″ (ATEX)

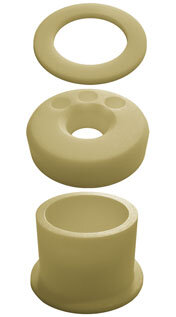

Maintenance packages PEEK

GEA Breconcherry Regler, Buchse, Dichtung PEEK

Troll Ball 3″ (FDA)

The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 11.11.2022-71427321893-1888948-71042)
