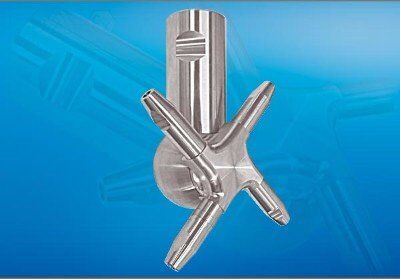

Tornado 4 Orbital cleaner
Attention product discontinuation: Tornado 4 orbital cleaners are no longer available. You can still get spare parts or a repair service on request. As an alternative cleaner, we recommend the product OC200.
Product Discontinuation: In line with our policy of continuous product improvement, we would like to announce that due to the success of the new OC200 modular orbital cleaner, we have decided to discontinue the Tornado 4 unit effective immediately. The Tornado 4 is no longer offered as the OC200 perfectly replaces it. However, the product support team is still available for maintenance and repairs, as well as to help you choose the optimal OC200 alternative.
Extremely powerful, radially and axially rotating jet cleaner with 4 nozzles
- liquid powered 360° low pressure orbital cleaner
- Extremely strong jet strength and high flow rate
- FDA compliant & EX certified
- acid, alkali and temperature resistant
- compact dimensions
- self-cleaning, hygienic, low-wear
- validatable cleaning
- Function monitoring by Vericlean or SMW 100

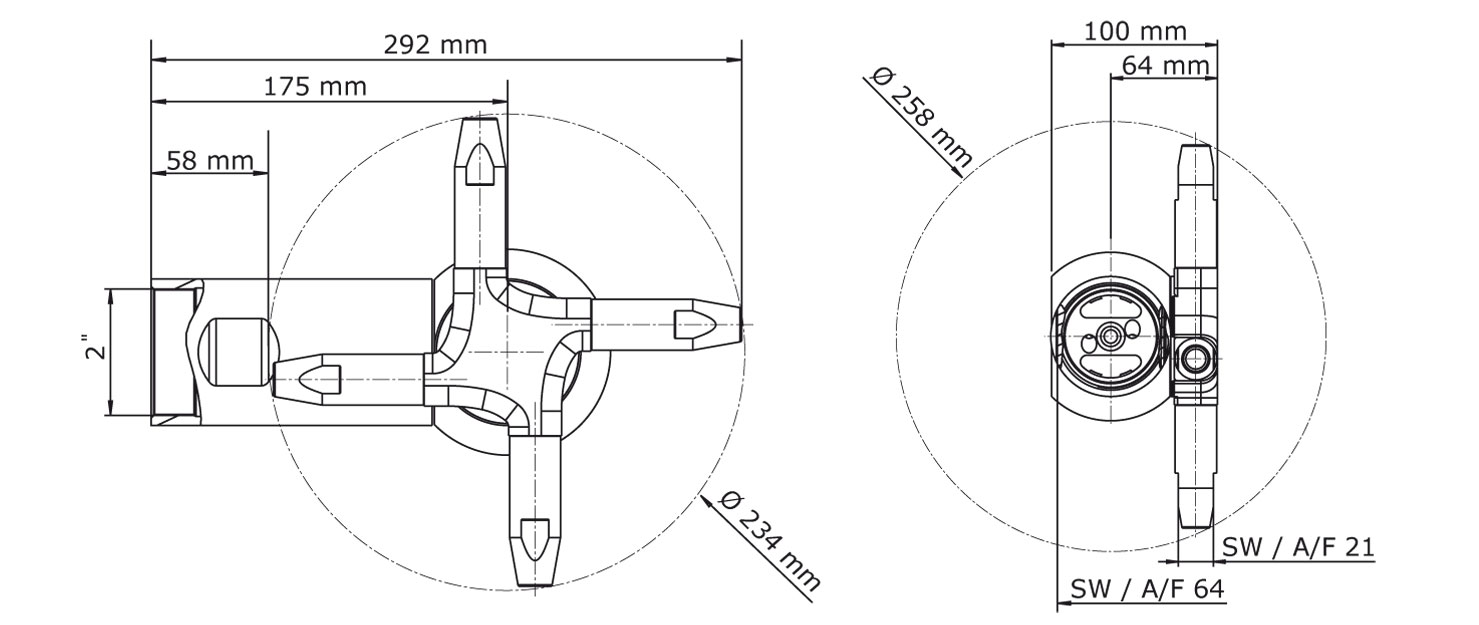

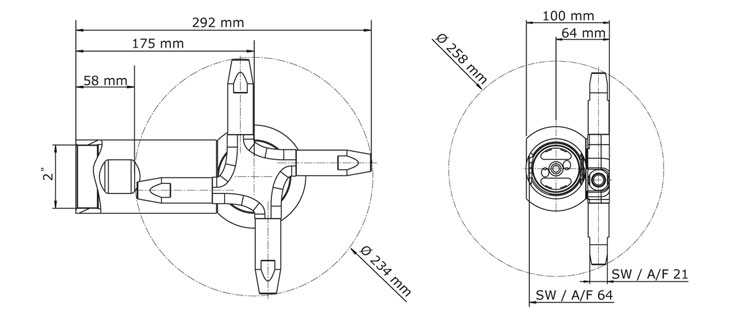

| Technical Data | Value |
|---|---|
| Max. cleaning diameter: | 34 meters |
| Spray pattern: | 360° orbital |
| Pressure range: | 4 – 10 bar / 58-145 psi |
| Flow rate: | 236 – 790 LPM (14,2 – 47,4 m³/h) |
| Insertion opening: | min. Ø 250 mm |
| Preferred mounting position: | arbitrary, preferrably vertical |
| Weight: | approx. 4,6 KG |
| Materials: | Stainless Steel 316L (1.4404), C.PTFE, PTFE |
| Pipe connection: | 2″ female thread BSP (NPT) |
| Optional Pipe Connections: | 2″ Splint, others on demand |
| Nozzle characteristics: | 4 x 8 mm, 4 x 9 mm, 4 x 10 mm, 4 x 11 mm, 4 x 12 mm Nozzles |
| Certificates: | 3.1, 2.2, ATEX, FDA Regulation (EC) No 1935/2004 |
| Max. operating temperature: | 95°C (203°F) |
| Max. ambient temperature: | 140°C (284°F), 30 Min. |
| Operating recommendation: | It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage. |

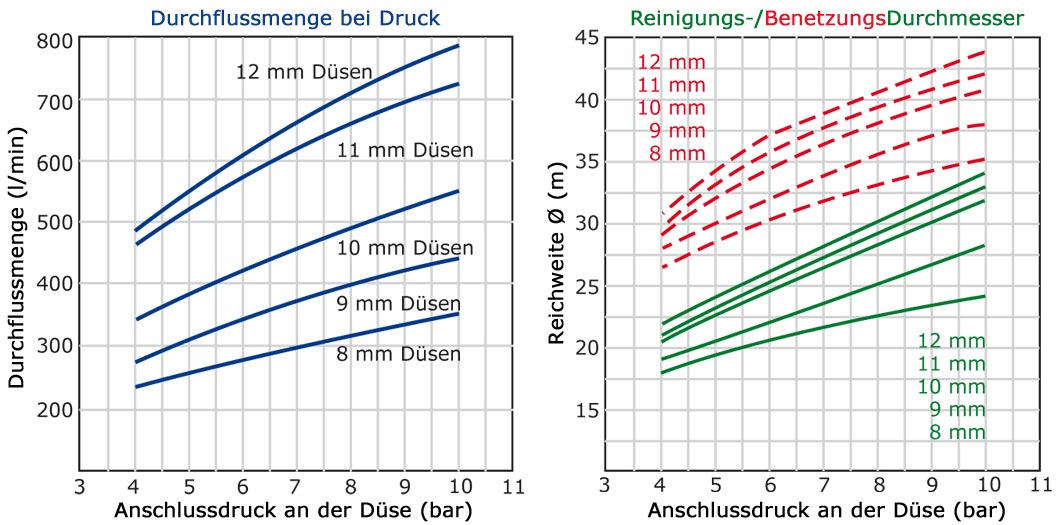

Optimaler Operation
The pressure range for operating a Tornado 4 is at 4 – 10 bar on the cleaning machine.
With a flow rate of 236 – 790 liters/minute, a cleaning diameter of 18 – 34 meters is achieved.
The Tornado 4 is a powerful target jet cleaner with an orbital 360° spray pattern. The Tempest is driven by the cleaning medium at a pressure of 4 to 8 bar. Turbine-driven, a radial and axial rotation of the nozzle head is generated. This creates aligned jets of liquid through four long nozzles with a strong impact effect up to a diameter of 34 metres. By circulating jets of liquid, a completing spray pattern with high coverage and full coverage is thus produced within a time window of 4 to 10 minutes.
Optimal flow control enables a smooth-running mechanism without ball bearings and a hygienic sealing concept, the energy used on the unit is transformed into a powerful cleaning effect. The orbital cleaning behaviour enables the best possible use of the cleaning liquid or chemical additives. For use in hygiene-sensitive areas, the unit keeps itself permanently clean with a self-cleaning nozzle and empties itself automatically after use in vertical operation.
The use of the unit always conserves resources and requires minimal wear and maintenance. The Tempest meets the highest hygiene and safety standards and can be used in EX zones and FDA applications at the same time. During a long service life, this unit will always prove to be a reliable partner for your cleaning tasks. Tempest orbital cleaners are available in many connection variants. Optionally, the cleaning process of a Tempest can be permanently and non-invasively monitored by SMW 100 or Vericlean. The Tempest is one of the latest and most effective developments in the cleaning technology market.
Tornado 4 orbital cleaners are available with many connection variants. It is very compact and can be installed in any position in vessels or equipment using a 2” threaded attachment or a choice of splint pin or clamp mounting. The use on a lance or hanging from a hose is also possible. Frequent areas of application for this product are tanks and containers in the brewing, beverage, dairy processing, food, pharmaceutical, chemical and transport industries as well as on ships.
Gewindebefestigung
Tornado 4 Standardgeräte sind mit 2″ zylindrischem Innengewinde BSP (British Standard PIPE nach DIN ISO 228) ausgestattet. Optional ist das Gerät mit 2″ kegeligem Innengewinde NPT (National Pipe Taper, Amerikanisches Rohrgewinde für selbstdichtende Verbindungen) erhältlich.

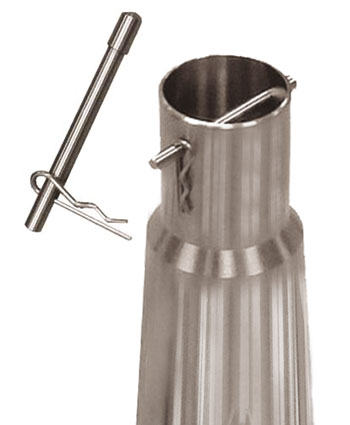

Splintbefestigung
Der Tornado 4 ist optional mit 2″ Splintbefestigung erhältlich. Die Splintbefestigung gewährleistet eine totraumfreie Befestigung der Reinigungsmaschine. Splintversionen haben einen ca. 15% höheren Durchfluss.

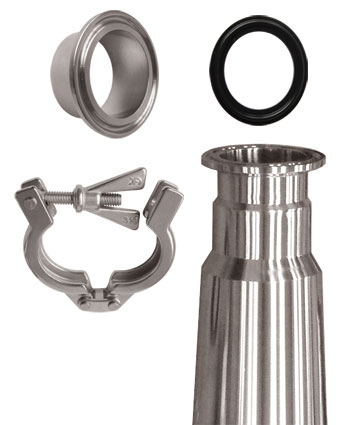

Klammerbefestigung
Der Tornado 4 ist optional mit 2″ Klammerbefestigung erhältlich. Eine Klammerbefestigung gewährleistet den unkomplizierten Ausbau der Reinigungsmaschine.
Tornado 4 mit 2″ Gewindeanschluss
| Anschluss | Düsen | Rohr* | Produktcode | Werkstoffe | Zertifikate | Artikelnummer |
|---|---|---|---|---|---|---|
| *entspricht dem max. Rohraußendurchmesser des Rohres auf das die Maschine installiert werden soll (Zoll oder mm). Splintversionen haben ca. 15% höheren Durchfluss. Empfohlene Standardgeräte mit hoher Lagerwahrscheinlichkeit sind blau dargestellt. | ||||||
| 2″ IG-BSP | 4 x 8,0 mm | 2″ | Tornado4-AF4x8S-BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-115 |
| 2″ IG-BSP | 4 x 8,0 mm | 2″ | Tornado4-F4x8S-BSP | 316L/PTFE | FDA, 3.1 | 4660-4980-116 |
| 2″ IG-NPT | 4 x 8,0 mm | 2″ | Tornado4-AF4x8S-NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-119 |
| 2″ IG-NPT | 4 x 8,0 mm | 2″ | Tornado4-F4x8S-NPT | 316L/PTFE | FDA, 3.1 | 4660-4980-122 |
| 2″ IG-BSP | 4 x 9,0 mm | 2″ | Tornado4-AF4x9S-BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-114 |
| 2″ IG-BSP | 4 x 9,0 mm | 2″ | Tornado4-F4x9S-BSP | 316L/PTFE | FDA, 3.1 | 4660-4980-117 |
| 2″ IG-BSP | 4 x 9,0 mm | 2″ | Tornado4-AF4x9S-NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-120 |
| 2″ IG-NPT | 4 x 9,0 mm | 2″ | Tornado4-AF4x9S-NPT | 316L/PTFE | FDA, 3.1 | 4660-4980-123 |
| 2″ IG-NPT | 4 x 10,0 mm | 2″ | Tornado4-AF4x10S-BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-113 |
| 2″ IG-NPT | 4 x 10,0 mm | 2″ | Tornado4-F4x10S-BSP | 316L/PTFE | FDA, 3.1 | 4660-4980-118 |
| 2″ IG-NPT | 4 x 10,0 mm | 2″ | Tornado4-AF4x10S-NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-121 |
| 2″ IG-NPT | 4 x 10,0 mm | 2″ | Tornado4-F4x10S-NPT | 316L/PTFE | FDA, 3.1 | 4660-4980-124 |
| 2″ IG-NPT | 4 x 11,0 mm | 2″ | Tornado4-AF4x11S-BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-132 |
| 2″ IG-NPT | 4 x 11,0 mm | 2″ | Tornado4-F4x11S-BSP | 316L/PTFE | FDA, 3.1 | 4660-4980-133 |
| 2″ IG-NPT | 4 x 11,0 mm | 2″ | Tornado4-AF4x11S-NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-134 |
| 2″ IG-NPT | 4 x 11,0 mm | 2″ | Tornado4-F4x11S-NPT | 316L/PTFE | FDA, 3.1 | 4660-4980-135 |
| 2″ IG-BSP | 4 x 12,0 mm | 2″ | Tornado4-AF4x12S-BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-138 |
| 2″ IG-BSP | 4 x 12,0 mm | 2″ | Tornado4-F4x12S-BSP | 316L/PTFE | FDA, 3.1 | 4660-4980-139 |
| 2″ IG-NPT | 4 x 12,0 mm | 2″ | Tornado4-AF4x12S-NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-140 |
| 2″ IG-NPT | 4 x 12,0 mm | 2″ | Tornado4-F4x12S-NPT | 316L/PTFE | FDA, 3.1 | 4660-4980-141 |
Tornado 4 mit 2″ Splintanschluss
| Anschluss | Düsen | Rohr* | Produktcode | Werkstoffe | Zertifikate | Artikelnummer |
|---|---|---|---|---|---|---|
| *entspricht dem max. Rohraußendurchmesser des Rohres auf das die Maschine installiert werden soll (Zoll oder mm). Splintversionen haben ca. 15% höheren Durchfluss. Empfohlene Standardgeräte mit hoher Lagerwahrscheinlichkeit sind blau dargestellt. | ||||||
| 2″ Splint | 4 x 8,0 mm | 55,80 | Tornado4-AF4x8S-200PF | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-125 |
| 2″ Splint | 4 x 8,0 mm | 50,80 | Tornado4-F4x8S-200PF | 316L/PTFE | FDA, 3.1 | 4660-4980-128 |
| 2″ Splint | 4 x 9,0 mm | 50,80 | Tornado4-AF4x9S-200PF | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-126 |
| 2″ Splint | 4 x 9,0 mm | 50,80 | Tornado4-AF4x9S-200PF | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-126 |
| 2″ Splint | 4 x 9,0 mm | 50,80 | Tornado4-F4x9S-200PF | 316L/PTFE | FDA, 3.1 | 4660-4980-129 |
| 2″ Splint | 4 x 10,0 mm | 50,80 | Tornado4-F4x10S-200PF | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-127 |
| 2″ Splint | 4 x 10,0 mm | 50,80 | Tornado4-F4x10S-200PF | 316L/PTFE | FDA, 3.1 | 4660-4980-130 |
| 2″ Splint | 4 x 11,0 mm | 50,80 | Tornado4-F4x11S-200PF | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-136 |
| 2″ Splint | 4 x 11,0 mm | 50,80 | Tornado4-F4x11S-200PF | 316L/PTFE | FDA, 3.1 | 4660-4980-137 |
| 2″ Splint | 4 x 12,0 mm | 50,80 | Tornado4-F4x12S-200PF | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4980-142 |
| 2″ Splint | 4 x 12,0 mm | 50,80 | Tornado4-F4x12S-200PF | 316L/PTFE | FDA, 3.1 | 4660-4980-143 |

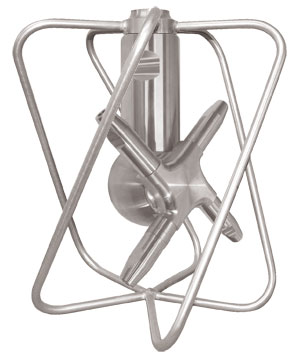

Schutzkäfig (feststehend)
| Werkstoffe: | Edelstahl 1.4404 (316L), PTFE |
| Zertifikate: | FDA, 3.1, 2.2 |
| Geräteanschluss: | 2″ AG-BSP |
| Zuleitung: | Anschweissanschluss für 41 mm Rohr oder 1,5″ AG-BSP |

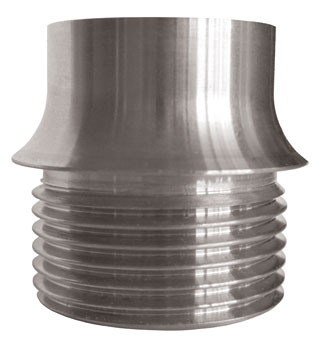

Anschweissadapter
| Werkstoffe: | Edelstahl 1.4404 (316L) |
| Zertifikate: | 3.1, 2.2 |
| Geräteanschluss: | 2″ AG-BSP |
| Zuleitung: | Anschweissende |

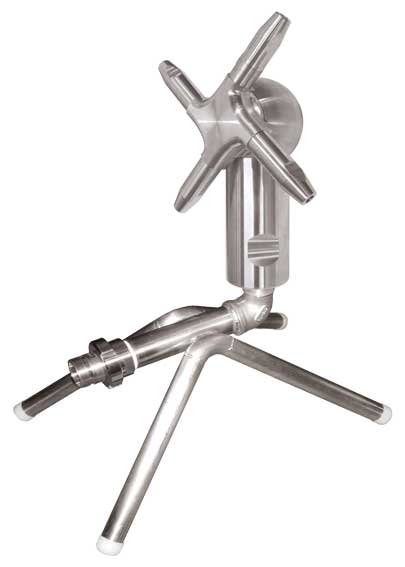

Standfuß
| Werkstoffe: | Edelstahl 1.4404 (316L), PTFE |
| Zertifikate: | 3.1, 2.2 |
| Geräteanschluss: | 2″ AG-BSP |
| Zuleitung: | nach Bedarf |

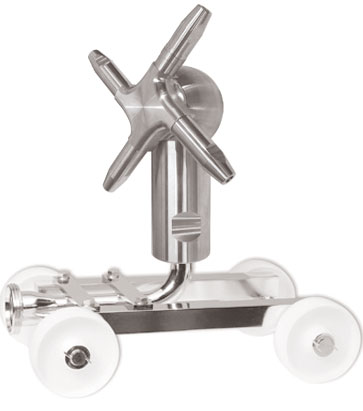

Tankreinigungswagen
| Werkstoffe: | Edelstahl 316L (1.4404), PP (PTFE) |
| Zertifikate: | FDA, 3.1, 2.2 |
| Geräteanschluss: | 2″ AG-BSP |
| Zuleitung: | DN50 Gewindestutzen DIN 11851 |

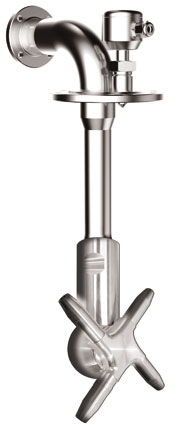

Installationslanze
| Werkstoffe: | Edelstahl 1.4404 (316L), EPDM, FKM |
| Zertifikate: | 3.1, 2.2 |
| Geräteanschluss: | 2″ AG-BSP (2″ Splint) |
| Tankanschluss: | Flansch nach Bedarf |
| Sensor: | mit/ohne SMW 100 |
Vericlean Rotationszähler
| Werkstoffe: | Edelstahl 316L (1.4404), PTFE |
| Zertifikate: | 3.1, 2.2 |
| Geräteanschluss: | 2″ AG-BSP |
| Tankanschluss: | Flansch nach Bedarf |
| Sensortyp: | IFM MFT200 |
| Überwachung: | Die Rotationsgeschwindigkeit der Reinigungsmaschine wird permanent angezeigt |
SMW 100 Flüssigkeitssensor
| Werkstoffe: | 1.4305, PEEK |
| Anschlusstyp: | Einschweissmuffe |
| Funktion: | Die Beschwallung des Sensors wird alle 20 Sekunden angezeigt |

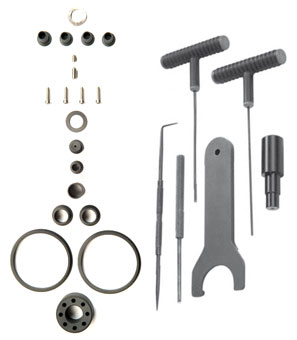

Wartungspakete & Werkzeug
| Tornado 4 C.PTFE (ATEX & FDA) | 4660-4080-888 |
| Tornado 4 PTFE (FDA) | 4660-4081-888 |
| Werkzeugsatz: | 4660-4011-888 |
Datenblatt Tornado4The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 18.10.2022-71427321893-1888948-71042)
