Barrel cleaner BRA Reference
Hand-held barrel cleaner with electric drive
- Cleaning and extraction at the same time
- 360° jet coverage
- Electric drive 100–240 VAC
- Modular, service-friendly design
- For barrels from 225 to 600 litres
- For bung holes larger than Ø 37 mm
- Bung hole fixture for Ø 37–56 mm
- Height-adjustable barrel support
- Cleaning head R40 with 2 nozzles (5°)
- Complete cleaning cycle in approx. 3–5 min
| Technical data | Value |
|---|---|
| Drive: | Electric, 100 – 240 VAC |
| Cleaning head: | R40, rotating |
| Operating pressure: | 80 – 120 bar (recommended) |
| Flow rate: | 15 – 20 l/min (recommended) |
| Max. temperature: | 90 °C (194 °F) |
| Rotation speed: | 17 rpm |
| Jet coverage: | 360° |
| Nozzles: | 2 pcs., 5° |
| Cleaning cycle: | approx. 3 – 5 min (approx. 60 revolutions) |
| Connection: | M22 × 1.5 |
| Insertion opening: | bung hole larger than Ø 37 mm |
| Bung hole fixture: | for Ø 37 – 56 mm |
| Barrel sizes: | 225 – 600 litres |
| Material head and tube: | stainless steel AISI 316 |
| Seals: | FPM (Viton®) |
| Dimensions: | 949 × 328 × 61 mm |
| Weight: | 7.2 kg |
| Approvals: | CE, CSA |
| Item no.: | PR.000.030 |

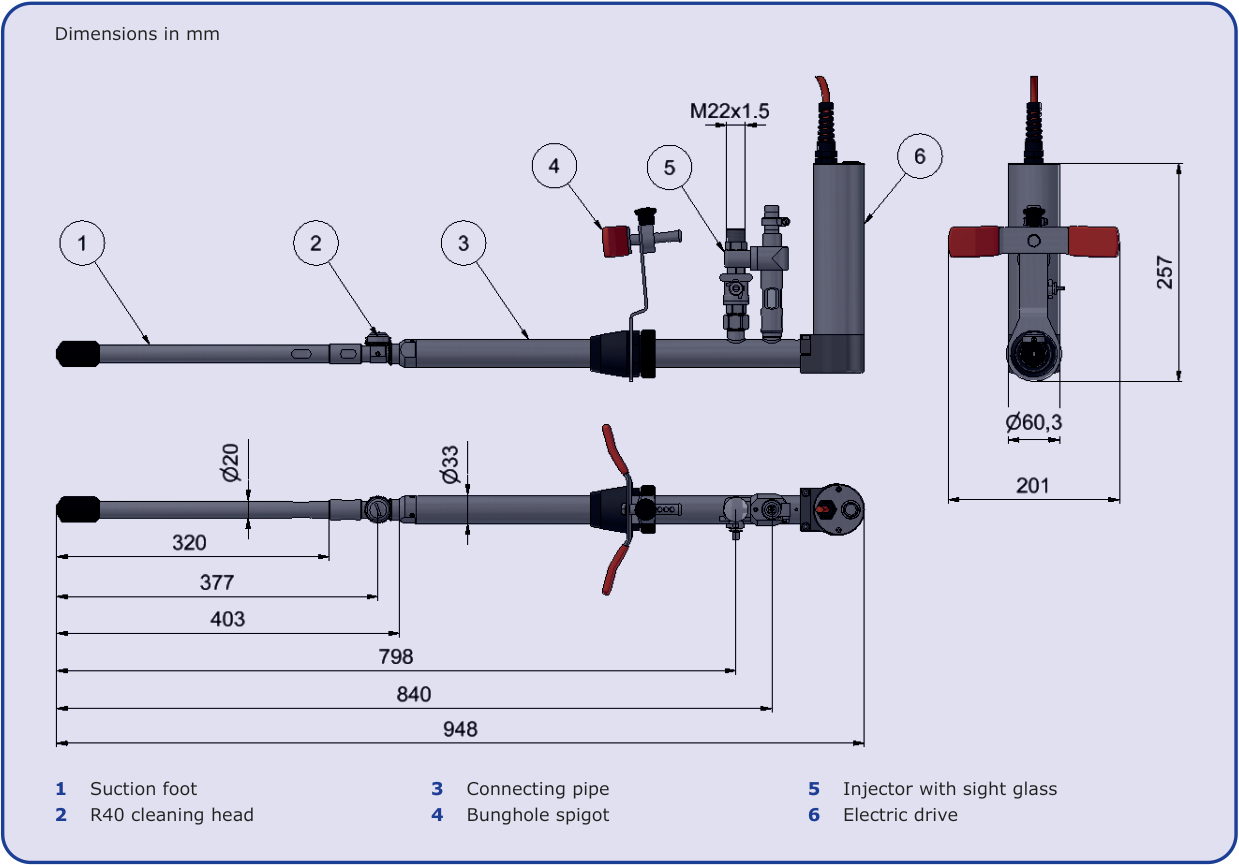

1 Suction foot · 2 Cleaning head R40 · 3 Connecting tube · 4 Bung hole spigot · 5 Injector with sight glass · 6 Electric drive
Dimensions in mm
The BRA Reference is a mobile hand-held unit for cleaning the inside of barrels directly at the storage location. It consists of a rotating cleaning head, an electric motor and a connecting tube and is inserted through the bung hole (larger than Ø 37 mm) into barrels with a capacity of 225 to 600 litres.
The electric motor drives the R40 cleaning head via the connecting tube; it rotates at 17 rpm and its two nozzles cover the entire barrel interior (360°). During and after cleaning, an integrated injector system extracts the dirty water via the suction tube – the vacuum required is generated by the high pressure of the cleaning water. Cleaning and extraction thus take place in a single operation; a complete cycle takes approx. 3–5 minutes.
The bung hole fixture and height-adjustable barrel support ensure a secure hold on the barrel. The BRA Reference is durable, easy to maintain and very quiet. Other tube lengths and drives are available on request. Thanks to the modular design, individual components can be replaced, so the unit is quickly back in operation after servicing. Please contact us directly to find out more about accessories and spare parts.
