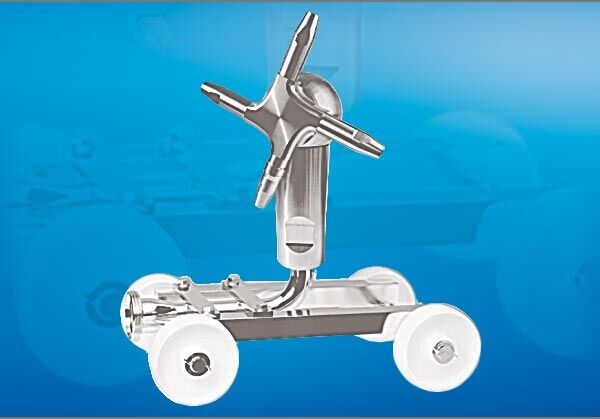

Tank cleaning trolley

Breconcherry Tankreinigungswagen (praktischer Reinigungswagen zum Einrollen in Tanks)

Practical cleaning trolley for
Rolling into tanks

  • Hygienic design with rollers made of PP or PTFE
  • ideal for orbital cleaners and jet cleaners
  • customizable connectors
  • ideal for horizontal, long tanks
  • robust and durable design

Technical Data

suitable for: Orbital cleaners, Jet cleaners and Rotating Nozzles
Materals Cleaning Trolley: Stainless Steel 316L (1.4404)
Materials Rolls: PP (FDA-compliant), optional PTFE
Liquid Connection: DN50 threaded socket DIN 11851
Certificates: FDA, 3.1, 2.2
Attachment Cleaning Nozzles: 1,5″ external thread BSP
Optionally available: Reducing Nipple to 1″ and 3/4″ (and others)
Options: Handpolish
Weight: approx. 5 – 12 KG, depending on the version
Article number: 254-000502 (1″ external thread BSP)
254-000504 (1,5″ external thread BSP)

A tank cleaning trolley makes it easy to roll a cleaning machine into a tank. A tank cleaning vehicle is best used for horizontal, long tanks in particular. A cleaning device can be pushed deep into the tank with the tank cleaning trolley via the connected supply line without having to enter the tank. The position of the cleaning machine can be changed during cleaning in order to clean specific sections more intensively.

The standard device connection of the tank cleaning trolley is a 1.5″ external thread. For cleaning nozzles with a smaller connection, a reducing nipple can be installed to 1″ or 3/4″. The tank cleaning trolley is suitable for light and heavy cleaning machines and always ensures a firm footing. The The design of the tank cleaning trolley prevents it from tipping over, and the trolley always remains in the desired position thanks to the attached hose.

The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 24.10.2022-71427321893-1888948-71042)
