Dropforming rotating nozzles

Dropforming rotating nozzles produce a rapid rotation with even the slightest pressure, with an immediate, even distribution of liquid. We offer you a comprehensive selection of different sizes, spray patterns and consumption values. Most of our rapidly rotating cleaning nozzles are hydrostatically mounted, which means that extremely long operating times can be achieved without any maintenance or downtime. We offer FDA-compliant rotating nozzles with EX exemption or EX type approval, ideal for almost all industrial cleaning applications.

Product overview - Dropforming rotating nozzles

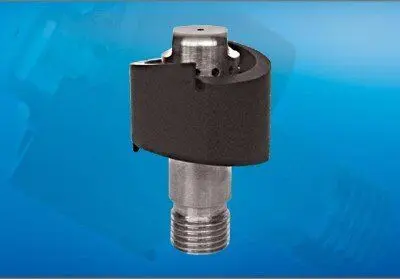

  • Turbodisc 25 rotating drop-forming nozzle

Turbodisc 25 EN

Cleaning ø:up to 1,5 Meters
Pressure Range: 2 - 4 bar
Flowrate:40 - 60 LPM
2,4 - 3,6 m³/h
  • Turbodisc rotating drop-forming nozzle

Turbodisc EN

Cleaning ø:up to 5 Meters
Pressure Range: 2 - 4 bar
Flowrate:40 - 245 LPM
2,4 - 14,7 m³/h

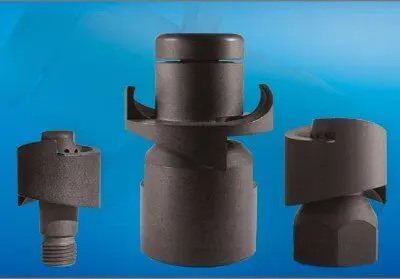

  • Chemidisc rotating drop-forming nozzle

Chemidisc EN

Cleaning ø:up to 5 Meters
Pressure Range: 2 - 4 bar
Flowrate:40 - 220 LPM
2,4 - 13,2 m³/h

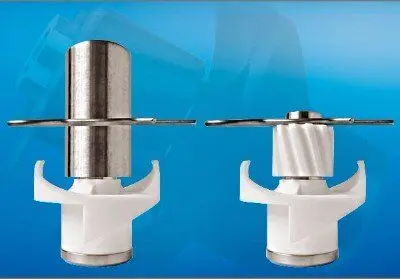

  • Clipdisc / Sanidisc rotating nozzle

Clipdisc / Sanidisc EN

Cleaning ø:up to 5 Meters
Pressure Range: 2 - 4 bar
Flowrate:93 - 278 LPM
5,6 - 16,7 m³/h

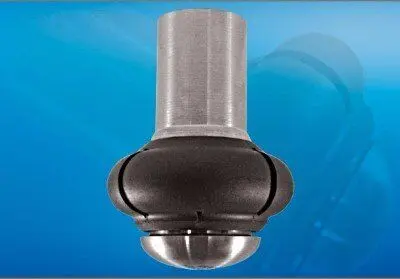

  • Torus 50/75 rotating nozzle

Torus 50/75 EN

Cleaning ø:up to 3,3 Meters
Pressure Range: 1 - 4 bar
Flowrate:15 - 77 LPM
0,9 - 4,6 m³/h

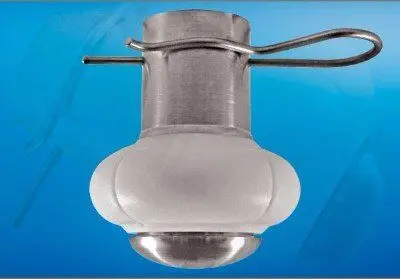

  • Torus 100 rotating nozzle

Torus 100 EN

Cleaning ø:up to 4,8 Meters
Pressure Range: 1 - 6 bar
Flowrate:50 - 118 LPM
3,0 - 7,1 m³/h

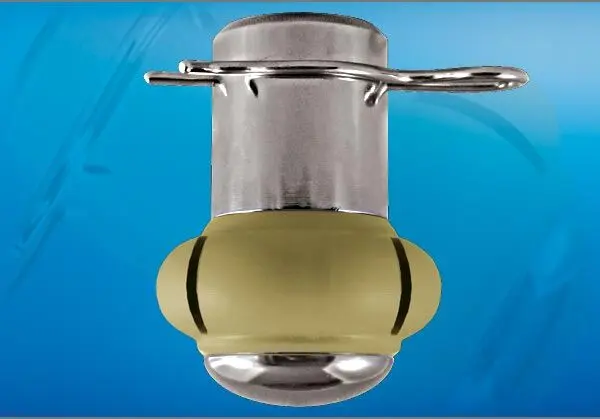

  • Torus 50/75 PEEK rotating nozzle

Torus 50/75 PEEK EN

Cleaning ø:up to 3,3 Meters
Pressure Range: 2 - 4 bar
Flowrate:17 - 77 LPM
1,0 - 4,6 m³/h

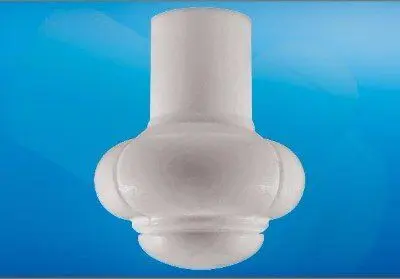

  • Chemitorus 50/75 rotating nozzle

Chemitorus 50/75 EN

Cleaning ø:up to 3,3 Meters
Pressure Range: 1 - 4 bar
Flowrate:15 - 67 LPM
0,9 - 4,0 m³/h

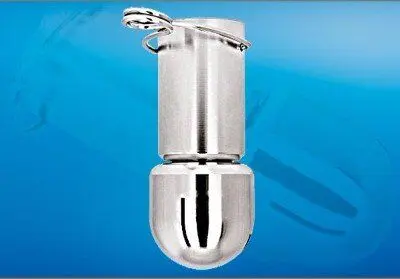

  • Rotiko rotating nozzle

Rotiko EN

Cleaning ø:up to 2,4 Meters
Pressure Range: 1,5 - 4 bar
Flowrate:16,8 - 76,5 LPM
1,01 - 4,59 m³/h

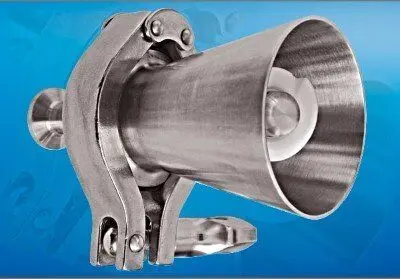

  • Turbo CW 25/75 rotating nozzle

Turbo CW 25/75 EN

Cleaning ø:with 200 mm / 1 m ø
Pressure Range: 2 - 8 bar
Flowrate:40 - 150 LPM
2,4 - 9,0 m³/h

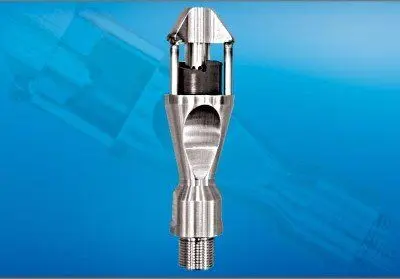

  • Caskwasher rotating nozzle

Caskwasher EN

Cleaning ø:up to 1,5 Meters
Pressure Range: 2 - 4 bar
Flowrate:40 - 60 LPM
2,4 - 3,6 m³/h
