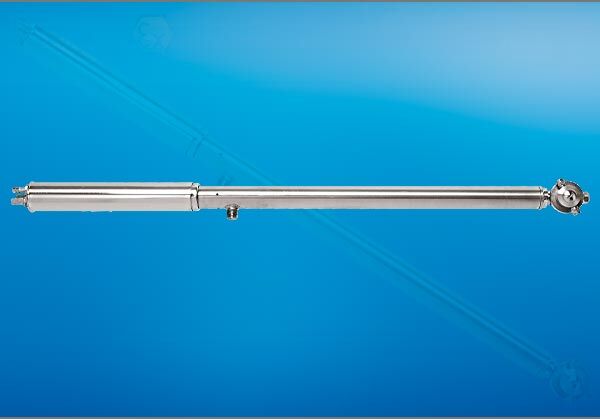

High-Pressure lance HL-A with air-pressure-motor

Hochdrucklanze HL-A

Effective high-pressure IBC and container cleaning with air motor

  • 360° and 270° spray head possible
  • strong jet power with low consumption values
  • working pressure 70-250 bar
  • Operation with commercially available high pressure cleaners
  • compact dimensions, easy to handle
  • hygienic and low-wear application

Technical Data

Technical Data Value
Max cleaning parameter: 2 meter
Spray pattern: 360° / 270° orbital
Number of Nozzles: 2,3 or 4 Nozzles
Nozzle Types: 0° spot jet, optional 5/15° flat jet nozzle
Pressure range: 70 – 250 bar
Flow rate: 30 – 200 LPM (1,8 – 12 m³/h)
Max. operating temperature: 150° Celsius
Insertion opening: 38 – 78 mm, depending on nozzle type
Rotating Speed: 10 – 20 t/min, adjustable
Shaft Lenght: 200 – 4000 mm, Special lengths on request
Mounting position: arbitrary
Weight: 5 – 20 KG, depending on shaft length
Materials: Stainless Steel 316L 304, 301, Viton, (EPDM/PTFE) more on request
Standard Pipe connection: 3/8″ AG, Optional M22x1,5 AG
Nozzle thread: 1/8″, M6, M4, depending on device
Certificates: 2.2, CE, ATEX, FDA on request
Ex version: possible only with HL-A and HL-H

High-pressure cleaners operate with a three-dimensionally rotating spray head, driven by an electric, compressed air or water-hydraulic motor. An orbital motion of both rotational axes forms a 360-degree spray pattern.
An extensive selection of spray head types allows these units to be used in a wide variety of applications.

The use of these devices is simple, these pressure washers can be connected to almost any standard high-pressure unit and stationary high-pressure pump. The shaft length of a device can be designed between 140 mm and 4000 mm, depending on the needs.
Compressed air and water-hydraulically driven variants are suitable for use in EX zones, and many of the unit types offered are FDA-compliant.
An extensive range of accessories is offered for handling and installation.

HL-A-R55 HL-A-R40 HL-A-R32 HL-A-R37 HL-A-RD HL-A-RD70 HL-A-RC HL-A-RW
Materials 316L 316L 316L 316L 316L 316L 316L 316L
Nozzle amount 2/3/4 2/3/4 2 2 4 4 2 2
Insertion opening min. 54 50 38 38 78 78 56 68
Nozzle thread 1/8″ M6 M4 M4 1/8″ 1/8″ 1/8″ 1/8″
Amount max. LPM 50 50 30 30 80 200 50 50
Temperature max. 150°C 150°C 150°C 150°C 150°C 150°C 150°C 150°C
Spraypattern 360° 360° 360° 360° 360° 360° 360° 270°
Rotation t/min 10 – 20 t/min, adjustable
Noise Emission 77 dBA, measured at the motor

Sprayhead R55

Spritzkopftypen HL R55

Dimensions HL R55

Dimensions HL R55

max. 250 bar, max. 50 liters/minute
max. shaft length: 4000 mm
Minimum dimension of the installation opening for linear insertion of the spray heads.

Sprayhead R40

Spritzkopftypen HL R40

Abmessungen HL R40

max. 250 bar, max. 50 liters/minute
max. shaft length: 4000 mm
Minimum dimension of the installation opening for linear insertion of the spray heads.

Sprayhead R32

Spritzkopftypen HL R32

Abmessungen-HL-R32

max. 180 bar, max. 30 liters/minute
max. shaft length: 4000 mm
Minimum dimension of the installation opening for linear insertion of the spray heads.

Sprayhead R37

Spritzkopftypen HL R37

Abmessungen HL R37

max. 180 bar, max. 30 liters/minute
max. shaft length: 4000 mm
Minimum dimension of the installation opening for linear insertion of the spray heads.

Double-Sprayhead RD

Spritzkopftypen HL RD

Abmessungen HL RD

max. 200 bar, max. 80 liters/minute
max. shaft length: 4000 mm
Minimum dimension of the installation opening for linear insertion of the spray heads.

Double-Sprayhead RD70

Spritzkopftypen HL RD70

Abmessungen HL RD70

max. 70 bar, max. 200 liters/minute
max. shaft length: 4000 mm
Minimum dimension of the installation opening for linear insertion of the spray heads.

Sealed Sprayhead RC

Spritzkopftypen HL RC

Abmessungen HL RC

Abmessungen HL RC

max. 250 bar, max. 50 liters/minute
max. shaft length: 4000 mm
Minimum dimension of the installation opening for linear insertion of the spray heads.

Angular Sprayhead RW

Spritzkopftypen HL RW

Abmessungen HL RW

Abmessungen HL RW

max. 250 bar, max. 50 liters/minute
max. shaft length: 4000 mm
Minimum dimension of the installation opening for linear insertion of the spray heads.

The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All data are without guarantee. (As of: 26.12.2022-71427321893-1888948-71042)
