Fury TWB HP Jet-cleaner
The Fury TWB HP steel cleaner works up to 90 bar
- effective spray strength
- low flow rates
- fast, effective cleaning
- protection against damage
- energy saving drive technology
- also available as Fury TWB version
| Technical Data | Value |
|---|---|
| Max. cleaning diameter: | 10 meters |
| Spraypattern: | 360°, optionally 180° |
| Pressure Range: | 20 – 90 bar |
| Flowrate: | 35 – 70 LPM (2,1 – 4,2 m³/h) |
| Insertion opening: | min. Ø 200/120 mm (depending on protective cage) |
| Mounting position: | vertical |
| Weight: | approx. 4,4 KG |
| Materials: | Stainless Steel 316 (1.4401), 316L (1.4404), C.PTFE, PTFE, C.PEEK, PEEK, Nitril, Viton, Kalrez |
| Connection types: | 3/4″ female thread BSP/NPT |
| Optional Connections: | on demand |
| Nozzle configuration: | 3 x 2 mm Nozzles |
| Certificates: | on demand |
| Max. operating temperature: | 120°C (248°F) |
| max. ambient temperature | 140°C (284°F), 30 Min. |
| Operating recommendation | It is recommended to install a filter/screen (500 μm) in the CIP inlet line to the tank cleaner to protect it from clogging with particles or damage |

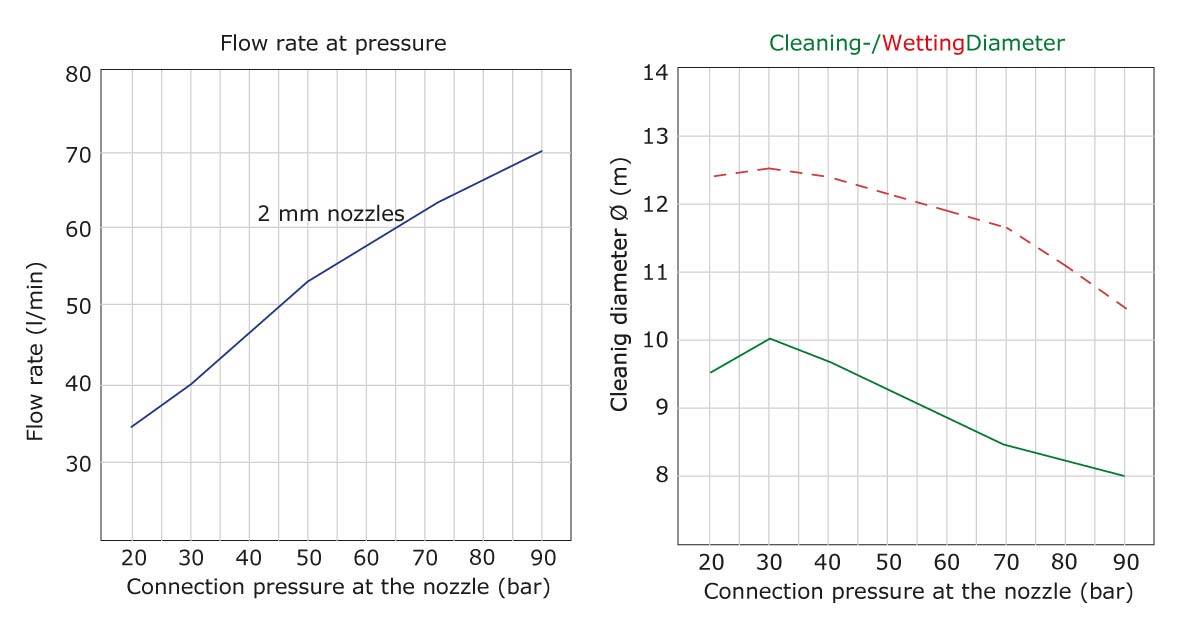

Optimal Operation
The pressure range for operating a Fury TWB HP is at 20 – 90 bar at the cleaning machine.
With a flow rate of 35 – 70 liters/minute, a cleaning diameter of 8 – 10 meters is achieved.
The FURY TWB HP Jet-cleaner is the high-pressure version of the FURY TWB, a powerful and water-saving jet-tank cleaner in which the nozzles oscillate 60° while the FURY TWB HP constantly rotates on its own axis. A cage protects the tank cleaner and nozzle head from damage.
The FURY TWB jet-cleaner is self-lubricating and is driven only by the force of the cleaning medium flowing through it. It has a simple drive system without high speed turbines or gears. The TWB Jet-cleaner is mainly used, when powerful cleaning with the lowest consumption of cleaning medium is required. The drive is designed to be very easy to maintain and to minimize wear, so that the lowest possible costs and a long service life can be assumed.
The FURY TWB achieves a 360° spray pattern and is mainly used in process vessels, trucks and transport containers.
Especially in the dairy, food, beverage, pharmaceutical and chemical industries, this reliable and resource-saving container cleaner finds its application. The FURY TWB can be permanently mounted and can also be used as a mobile unit.
The index mechanism of the FURY TWB ensures very effective and careful coverage of the spray pattern with maximum spray strength and cleaning effect.
The open design of the FURY TWB makes maintenance and inspection very easy. The FURY TWB HP is also available as its low pressure version: FURY TWB Jet-cleaner.
Fury TWB HP with 3/4″ BSP thread
| Connection | Nozzles | Pipe* | Productcode | Materials | Certificate | Article number |
|---|---|---|---|---|---|---|
| *entspricht dem max. Rohraußendurchmesser des Rohres auf das die Maschine installiert werden soll (Zoll oder mm). | ||||||
| 3/4 “ IG-BSP | 3 x 2,0 | 3/4 | FuryTWBHP-3×2-BSP | 316L/C.PEEK/C.PTFE | 3.1, 2.2 | 4660-4951-010 |
Maintenance package
| Fury TWB HP | – |
The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 30.12.2022-71427321893-1888948-71042)
