Turbo CW 25/75 Target cleaner

GEA Breconcherry Turbo CW 25/75 (Zielreinigung eines Bereichs) GEA Breconcherry Turbo CW 25/75 (targetcleaner)

Target cleaning of an area,
hygienic & self-cleaning

  • no ball bearings
  • hygienic & self-cleaning
  • horizontal & vertical
  • maintenance-free operation possible
  • very few single components
  • optimal for shaded areas
  • continuous spray strength

Technical Data

Technical Data Value
Spray characteristics: CW25 1 m horizontal with 200 mm Ø round spray pattern,
CW75 1 m horizontal with 1 m Ø round spray pattern
Spray pattern: Target oriented
Pressure range: CW25 2 – 6 bar,
CW75 4 – 8 bar
Flow rate: CW25 40 – 70 LPM (2,4 – 4,2 m³/h),
CW75 105 – 150 LPM (6,3 – 9,0 m³/h)
Insertion opening: CW25 min. Ø 100 mm,
CW75 min. Ø 110 mm
Mounting position: arbitrary
Weight: on request
Materials: Stainless Steel 316 (1.4401), 316L (1.4404), C.PTFE, PTFE, EPDM
Standard Pipe connection: KCW25 1/2” Clamp connection, 2,5” Welded connection,
CW75 1” Clamp connection, 3” Welded connection
Optional Pipe connections: on request
Nozzle characteristics: CW25 Turbodisc 25 360°, CW75 Turbodisc 75 360°
Certificates: 3.1, 2.2, ATEX, FDA, FDA Regulation (EC) No 1935/2004
Max. operating temperature: 95°C (2003°F)
Max. ambient temperature: 140°C (284°F), 30 Min.
Operation recommendation: It is recommended to install a filter/screen (500 μm) in the CIP inlet line to the tank cleaner to protect it from clogging with particles or damage.

Operating Values

Turbo CW 25

Pressure
bar		 Flowrate
LPM (m³/h)		 Spray radius diameter in meters
2 40 (2,4) Depending on the distance
to the target area and pressure
the Turbo CW25 creates a
spray radius of 2 – 6 meters
3 50 (3,0)
4 60 (3,6)
5 65 (3,9)
6 70 (4,2)

Turbo CW 75

Pressure
bar		 Flowrate
LPM (m³/h)		 Spray radius diameter in meters
Distance to target in meters
1 m 2 m 3 m 4 m
4 105 (6,3) 1,0 1,2 – –
5 120 (7,2) 1,0 1,5 – –
6 130 (7,8) 1,0 1,5 1,5 –
7 140 (8,4) 1,2 1,5 1,8 –
8 150 (9,0) 1,2 1,5 1,8 2,0

Measurements

Turbo CW 25

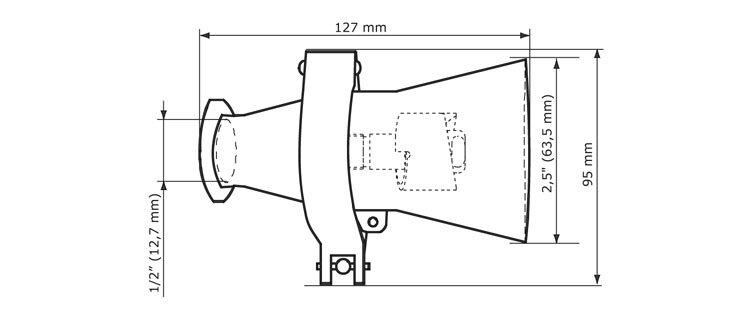

GEA Breconcherry Turbo CW 25 Abmessungen

Turbo CW 75

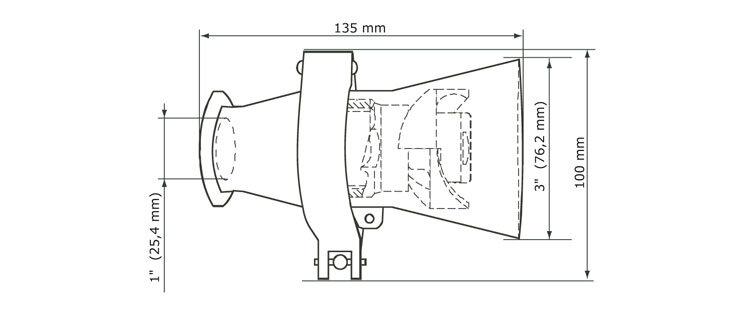

GEA Breconcherry Turbo CW 75 Abmessungen

Product description

The TURBO CW25/75 is specially designed for targeted cleaning of hard-to-reach areas. Inside a hopper, a Turbodisc 25/75 creates a forward-emerging spray pattern with high-energy droplets. The cleaning nozzle constantly cleans itself during operation.

The TURBO CW25/75 can be mounted in the vessel on a pipe feeder, or welded directly to the vessel wall. The Turbodisc 25/75 can be easily removed from the hopper at any time, the unit works in any installation position and is very insensitive to contamination. A vertical downward position allows the TURBO CW25/75 to specifically clean conveyors or their sections.

The targeted water jet enables cleaning of agitator parts in horizontal and vertical operation, and can also be welded directly to the tank wall in the correct position without colliding with the agitator. The TURBO CW25/75 can be used for cleaning pipe areas. Likewise, the cleaning of shadow areas in tanks is possible by installing it in a sensible position. The TURBO CW25/75 is a cost effective replacement solution for retractable cleaning nozzles.

Areas of application: Brewing, beverage, dairy processing, food, pharmaceutical, chemical and transportation industries. Flushing or cleaning of problem areas, shadow areas, agitators, struts, corner areas in containers or in conveyor and transport systems.

Spray pattern

Turbo CW 25

Spritzbild Turbo CW 25

Turbo CW 75

Spritzbild-TurboCW75-klein

The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 22.12.2022-71427321893-1888948-71042)

]]> Caskwasher EN https://www.breconcherry.de/en/products-en/caskwasher-en/ Thu, 12 Oct 2023 19:50:04 +0000 https://www.breconcherry.de/?p=14044

Caskwasher Rotating nozzles

GEA Breconcherry Caskwasher Rotationsdüsen (geschützter Turbodisc 25 Fassreiniger)

Protected Turbodisc 25 barrel cleaner

  • no ball bearings
  • fast rotation and low liquid volumes
  • FDA compliant & EX certified
  • maintenance free for many years
  • very few individual components
  • protected against damage
  • uniform cleaning pattern

Technical Data

Technical Data Value
Max cleaning parameter: 1,5 meter
Spray pattern: 180°
Cleaning area: 360°
Pressure range: 2-bar
Flow rate: 40 – 60 LPM (2,4 – 3,6 m³/h)
Insertion opening: min. Ø 45 mm
Mounting position: arbitrary
Weight: on request
Materials: Stainless Steel 316L (1.4404), C.PTFE, PTFE, PEEK
Standard Pipe connection: 3/4″ external thread
Optional Pipe connections: on request
Nozzle characteristics: Turbodisc 25 180°
Certificates: 3.1, 2.2, ATEX, FDA, FDA Regulation (EC) No 1935/2004
Max. operating temperature: 95°C (2003°F)
Max. ambient temperature: 140°C (284°F), 30 Min.
Operation recommendation: It is recommended to install a filter/screen (500 μm) in the CIP inlet line to the tank cleaner to protect it from clogging with particles or damage.

Operating values

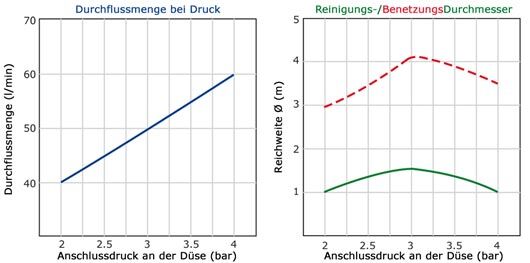

GEA Breconcherry Betriebswerte Caskwasher

Optimal Operation

The optimal pressure range for operating the caskwasher is at 2 – 4 bar at the cleaning nozzle.
With a flowrate of 40 – 60 Liters/Minute a Cleaning diameter of 1 – 1,5 meters is established.

Measurements

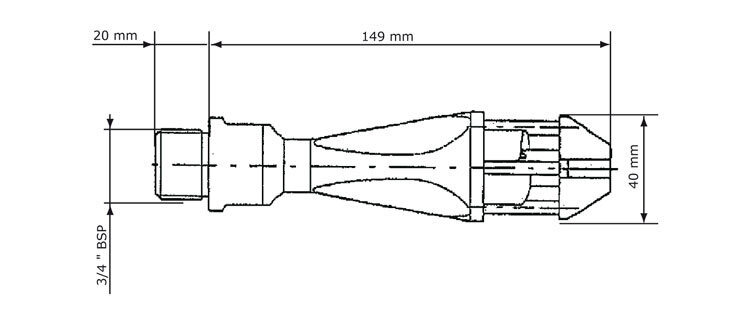

GEA Breconcherry Caskwasher Abmessungen

Product description

The TURBODISC CASKWASHER is a compact and powerful cleaning device specially designed for various types of barrels and containers in the wine industry. In operation, the CASKWASHER is located underneath the container with the cleaner entering the container or the container being exposed to the cleaner. The rotation of the TURBODISC distributes the cleaning medium evenly throughout the container with effective mechanical energy.
The CASKWASHER is driven only by the cleaning medium creating an excellent and uniformly continuous cleaning by impacting drops on the container wall.

The cleaning liquid is directed in the caskwasher onto a disc centrifuge, which rotates frictionlessly at high speed on a bearing of cleaning liquid. The operating action is instantaneous, high impact and full coverage.
A cage eliminates damage to the spray head, making the TURBODISC CASKWASHER suitable for automated cleaning or launching.

The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 22.12.2022-71427321893-1888948-71042)

]]>
