SR1000 Retractor
Extendable rotating nozzle with spring return
- Version with different nozzle types
- FDA conform & EX certified
- acid, alkali & temperature resistant
- adaptable design, different stroke widths
- designed for hygienic operation
- operation monitoring by sensors possible
| Technical Data | Value |
|---|---|
| Spray pattern: | 90°, 180°, 270°, 360° auf-, abwärt |
| Pressure range: | 2 – 4 bar |

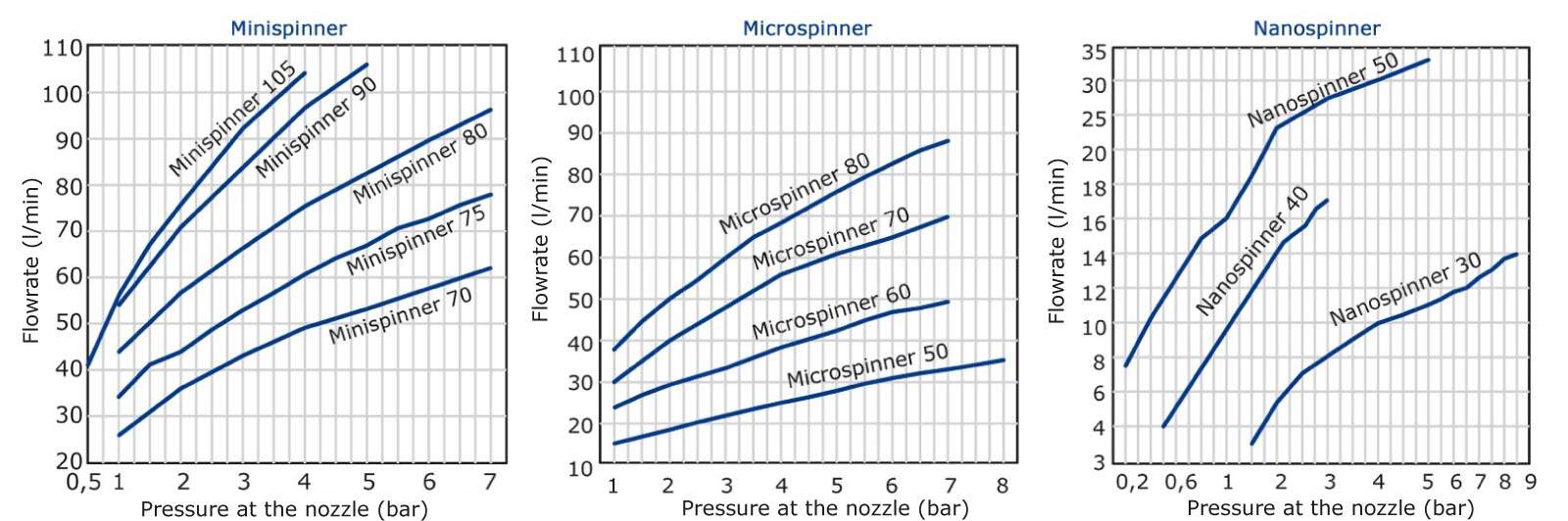

| Flow rate: | 48 – 90 LPM (2,9 – 5,4 m³/h) |
| Stroke width: | 50 – 1000 mm (devicedependant) |
| Preferred mounting position: | arbitrary |
| Female thread: | Mini 3/4″, Micro 3/8″, Nano 1/8″ |
| Insertion opnening: | Mini min. Ø 45 mm, Micro min. Ø 30 mm, Nano min. Ø 20 mm |
| max. cleaning diameter: | Mini 4 meters, Micro 2 meters, Nano 1 meters |
| Materials: | Stainless Steel 316L (1.4404), 316 (1.4401) Ball bearing/spring, Hastelloy (2.4610) |
| Connection types: | DN16, DN18, DN25 and others |
| Nozzle configuration: | Mini-, Micro-, Nanospinner, others on demand |
| Certificates | 3.1, 2.2, (ATEX, FDA) |
| Max. operating temperature: | 90°C (194°F) |
| max. ambient temperature | 110°C (230°F), 30 Min. |
| Operating recommendation | It is recommended to install a filter/screen (500 μm) in the CIP inlet line to the tank cleaner to protect it from clogging with particles or damage |
Retractors are extendable cleaning nozzles. By using retractor nozzles, the highest level of safety and hygiene can be achieved. Our selection of retractor nozzles includes units with spring or compressed air retraction. Nozzle extension in these devices is usually accomplished via fluid pressure. Retractors can be equipped with static spray balls, Chemidisc and Chemitorus series slide bearing nozzles, and high-speed rotating ball bearing nozzles. The position of a retractor nozzle (open/closed) can be checked by means of a magnetic sensor. Our retractors can be adapted to individual needs. Depending on the type of device, FDA conformity as well as EX exemption and stroke widths between 50 mm and 1000 mm are possible.
The SR1000 retractor with ball bearing nozzle is based on a spring return system. The cleaning nozzle is only retracted via the liquid pressure. This requires a pressure of 2 bar or more. The SR1000 is usually equipped with the ball bearing nozzles Nanospinner, Microspinner or Minispinner, the use of other nozzles can be realized via our customer design concept. This product is an open retractor system where there is no closure of the nozzle to the product space. The rotary nozzle can be recessed in the wall or sealed off from the product chamber by a ball valve, for example. In this case, the nozzle is retracted into the container through the open ball valve. The stroke width of this retractor can be between 50 mm and 1000 mm and is individually adapted to customer requirements.
| _ | MR1 | MR2 | IS25 | SR1000 |
|---|---|---|---|---|
| Sprayhead | Chemidisc 25/75, Torus | Chemidisc 25/75, Torus | Fixed Sprayball | Spinner |
| Container-connection | DN65/2,5 | DN65/2,5″ | DN80 | DN16 bis DN200 |
| Extend | Product-pressure | Product-pressure | Air-pressure | Product-pressure |
| Closure | Spring-tension | Air-pressure | Spring-tension | Spring-tension |
| Extension Lenght | 50 – 300 mm | 50 – 300 mm | 56 mm | 50 – 1000 mm |
| Sensor | open / closed | open / closed | No sensor | open / closed |
| Nozzle-lock | sealing | sealing | sealing | open |
| Certificates | ATEX & FDA | ATEX & FDA | FDA | FDA (ATEX) |
| Usage Area | Pipe-cleaning & Cleaning of Shadow Areas | Tank cleaning, Pipe-cleaning | Pipe-cleaning & Cleaning of Shadow Areas | Tank cleaning, Pipe-cleaning |
The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 30.12.2022-71427321893-1888948-71042)
